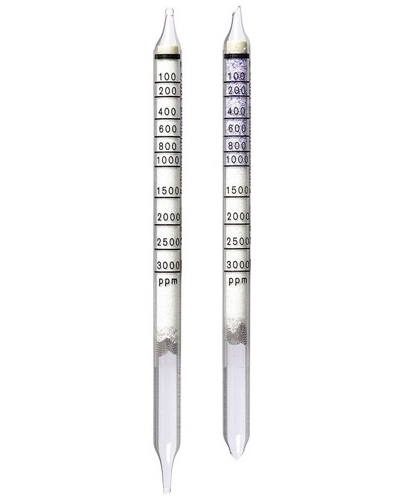

Carbon Dioxide Detection Tubes 100/a (100 - 3000 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Carbon Dioxide Detection Tubes 100/a (100 - 3000 ppm)
| Standard Measuring Range: |
100 to 3,000 ppm |
| Number of Strokes (n): |
10 |
| Time for Measurement: |
approx. 4 min. |
| Standard Deviation: |
±10 to 15 % |
| Color Change: |
white to pale violet or blue violet |
| Temperature: |
15 to 25° C |
| Absolute Humidity |
max. 23 mg H2O / L |
| Reaction Principle: |
CO2 + N2H4 ?> NH2-NH-COOH |
| Cross Sensitivity: |
No influence on the reading by 10 ppm hydrogen sulfide and 2 ppm sulfur dioxide. |
Carbon Dioxide Detection Tubes 100/a (100 - 3000 ppm)
