Carbon Dioxide 0.1%/a (0.1 - 6 Vol.%)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces.
Carbon Dioxide 0.1%/a (0.1 - 6 Vol.%)
| Standard Measuring Range: |
0.5 to 6 vol. % / o.1 to 1.2 vol. % |
| Number of Strokes (n): |
1 / 5 |
| Time for Measurement: |
approx. 30 sec. / approx. 2.5 min. |
| Standard Deviation: |
± 5 to 10 % |

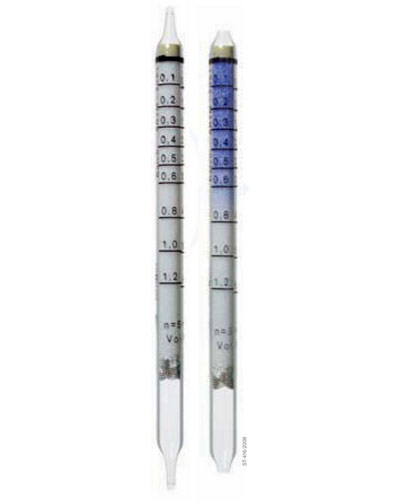

| Color Change: |
white to violet |
| Temperature: |
0 to 30° C |
| Absolute Humidity: |
max. 30 mg H2O / L |
| Reaction Humidity: |
CO2 + Amine -> violet reaction product |
| Cross Sensitivity: |
No influence on the reading by 10 ppm hydrogen sulfide and 2 ppm
sulfur dioxide. |
Carbon Dioxide 0.1%/a (0.1 - 6 Vol.%)
