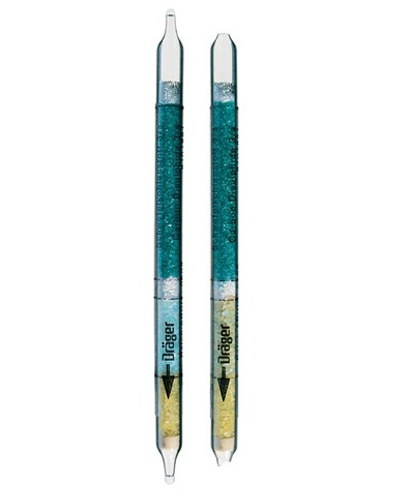

Carbon Disulfide Detection Tubes 3/a (3 - 95 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Carbon Disulfide Detection Tubes 3/a (3 - 95 ppm)
| Standard Measuring Range: |
3 to 95 ppm |
| Number of Strokes (n): |
15 to 1 |
| Time for Measurement: |
max. 2 min. |
| Standard Deviation: |
30 % |
| Color Change: |
pale blue ?> yellow green |
| Temperature: |
0 to 40 C |
| Absolute Humidity: |
< 30 mg H2O / L |
| Reaction Principle: |
2 CS2 + 4 NHR2 + Cu2+ ?>
Cu (SCSNR2)2 + 2 NH2R2+ |
| Cross Sensitivity: |
Hydrogen sulfide in the TLV range is retained in the pre-layer and does not interfere. |
Carbon Disulfide Detection Tubes 3/a (3 - 95 ppm)
