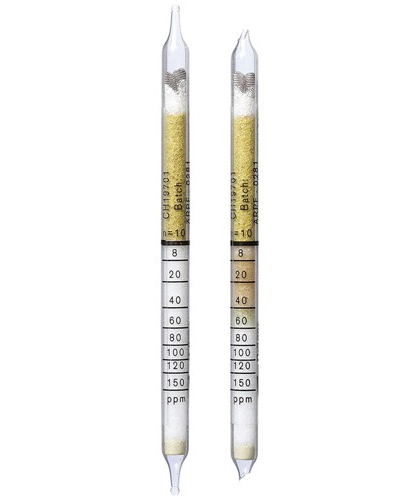

Carbon Monoxide Detection Tubes 8/a (8 - 150 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Carbon Monoxide Detection Tubes 8/a (8 - 150 ppm)
| Standard Measuring Range: |
8 to 150 ppm |
| Number of Strokes (n): |
10 |
| Time for Measurement: |
approx. 2 min. |
| Standard Deviation: |
± 10 to 15 % |
| Color Change: |
white ?> pale brown |
| Temperature: |
0 to 50° C |
| Absolute Humidity: |
< 50 mg H2O / L |
| Reaction Principle: |
5 CO + I2O5 ?> I + 5 CO2 |
| Cross Sensitivity |
Acetylene is also indicated, however, with less sensitivity. Petroleum hydrocarbons, benzene, halogenated hydrocarbons and hydrogen sulfide are retained in the pre-layer. In the case of higher concentrations of interfering hydrocarbons, use should be made of a carbon pre-tube (CH 24 101). Higher concentrations of easily cleavable halogenated hydrocarbons (e.g. trichloroethylene), are liable to form chromyl chloride in the pre-layer which changes the indicating layer to a yellowish-brown. CO determination is impossible in the case of high olefin concentrations. |
Carbon Monoxide Detection Tubes 8/a (8 - 150 ppm)
