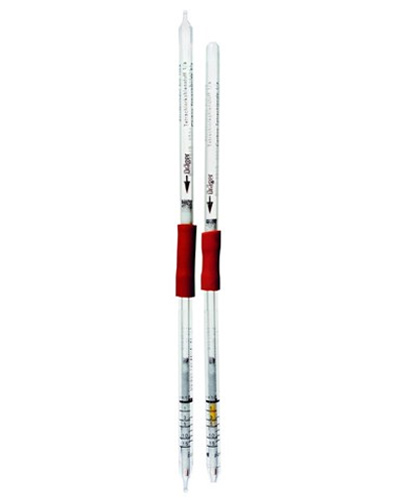

Carbon Tetrachloride Detection Tubes 1/a (1 -15 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Carbon Tetrachloride Detection Tubes 1/a (1 -15 ppm)
| Standard Measuring Range: |
1 to 15 ppm / 10 to 50 ppm |
| Number of Strokes (n): |
10 / 5 |
| Time for Measurement: |
approx. 6 min. / 3 min. |
| Standard Deviation: |
15 to 20 % |
| Color Change: |
white ?> yellow |
| Temperature: |
15 to 30 C |
| Absolute Humidity: |
3 to 15 mg H2O / L |
| Reaction Principle: |
a) CCl4 + H2S2O7 ??> COCl2
b) COCl2 + Aromatic nitrogen compounds
??> yellow reaction product |
| Cross Sensitivity: |
- Chloropicrin and phosgene are indicated with the same sensitivity.
- It is impossible to measure carbon tetrachloride in the presence of chloropicrin and phosgene.
- No interference from:
- 1 ppm chlorine
- 5 ppm hydrochloric acid
- 20 ppm methyl bromide
- 1,000 ppm acetone
|
