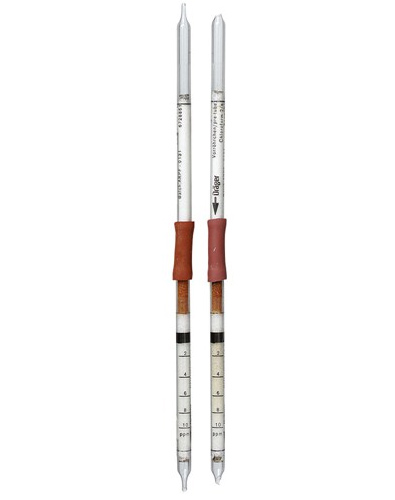

Chloroform Detection Tubes 2/a (2 -10 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces.
Chloroform Detection Tubes 2/a (2 -10 ppm)
| Standard Measuring Range: |
2 to 10 ppm |
| Number of Strokes (n): |
10 |
| Time for Measurement: |
approx. 9 min |
| Standard Deviation: |
±20 to 30 %
at 20° C and 9 mg H2O / L |
| Color Change: |
white ?> yellow |
| Temperature: |
10 to 30° C |
| Absolute Humidity: |
9 mg H2O / L |
| Reaction Principle: |
a) CHCl3 + CRVI ??> Cl2
b) Cl2 + o-tolidine ??> yellow reaction
product |
| Cross Sensitivity: |
Other chlorinated hydrocarbons are indicated, but with different sensitivities. |
