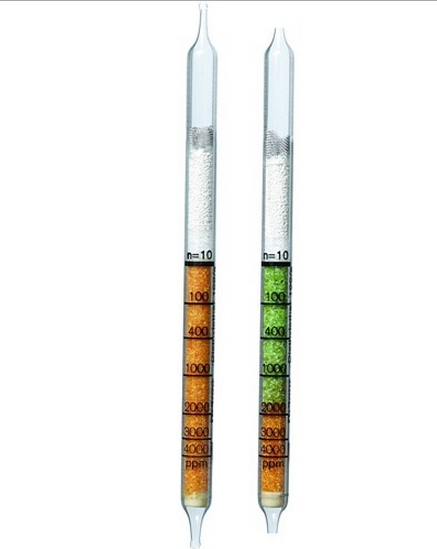

Diethyl Ether Detection Tubes 100/a (100 - 4000 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Diethyl Ether Detection Tubes 100/a (100 - 4000 ppm)
| Standard Measuring Range: |
100 to 4,000 ppm |
| Number of Strokes (n): |
10 |
| Time for Measurement: |
approx. 3 min |
| Standard Deviation: |
±15 to 20 % |
| Color Change: |
orange ?> green brown |
| Temperature: |
15 to 40° C |
| Absolute Humidity: |
3 to 15 mg H2O / L |
| Reaction Principle: |
C2H5-O-C2H5 + CrVI ??>
CrIII + various oxidation products |
| Cross Sensitivity: |
Many petroleum hydrocarbons, alcohols, aromatics and esters are indicated as well, but with different sensitivities. It is not possible to differentiate between them. |
