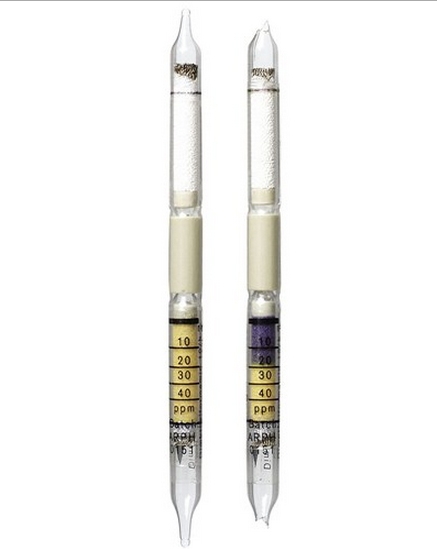

Dimethyl Formamide Detection Tubes 10/b (10 - 40 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Dimethyl Formamide Detection Tubes 10/b (10 - 40 ppm)
| Standard Measuring Range: |
10 to 40 ppm |
| Number of Strokes (n): |
10 |
| Time for Measurement: |
approx. 3 min |
| Standard Deviation: |
±20 to 30 % |
| Color Change: |
yellow ?> gray blue |
| Temperature: |
15 to 35° C |
| Absolute Humidity: |
3 to 12 mg H2O / L |
| Reaction Principle: |
a) Dimethylformamide + NaOH ??> NH3
b) NH3 + pH-indicator ??> blue gray reaction product |
| Cross Sensitivity: |
Other basic substances, such as ammonia, organicsamines and hydrazine are also indicate, however, with differing sensitivity |
Dimethyl Formamide Detection Tubes 10/b (10 - 40 ppm)
