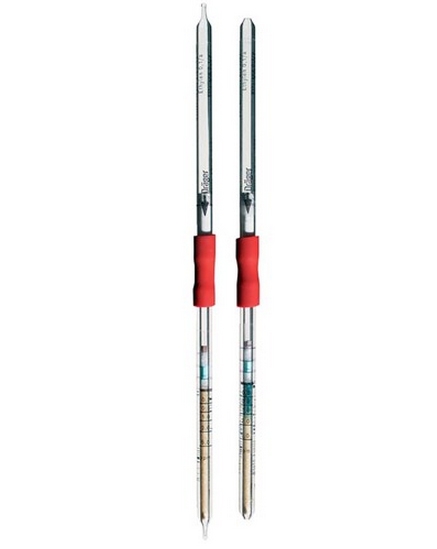

Ethylene Detection Tubes 0.1/a (0.1 - 5 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Ethylene Detection Tubes 0.1/a (0.1 - 5 ppm)
| Standard Measuring Range: |
0.2 to 5 ppm |
| Number of Strokes (n): |
20 |
| Time for Measurement: |
approx. 30 min |
| Standard Deviation: |
15 to 30 % |
| Color Change: |
pale yellow ?> grayish blue |
| Temperature: |
10 to 40 C |
| Absolute Humidity: |
5 to 20 mg H2O / L |
| Reaction Principle: |
CH2=CH2 + Pd-Molybdate complex ??> blue reaction product |
| Cross Sensitivity: |
Other similar compounds are indicated in addition to ethylene, such as:
- 100 ppm butadiene result in a reading of 1 ppm
- 50 ppm butylene result in a reading of 1 ppm
- 5 ppm propylene result in a reading of 1 ppm
- 20 ppm hydrogen sulfide result in a reading of 2 ppm
- 25 ppm CO change the indicating layer to a greyish blue
|
