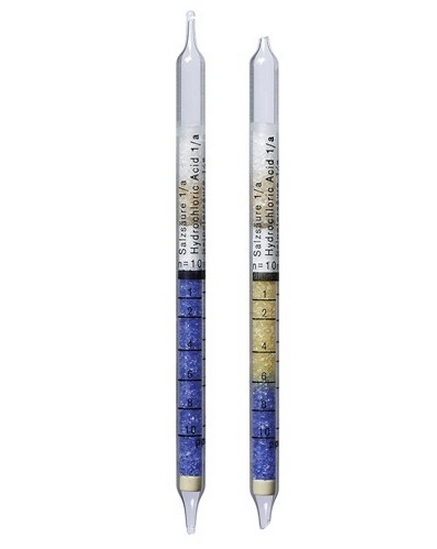

Hydrochloric Acid Detection Tubes 1/a (0.5 - 100 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Hydrochloric Acid Detection Tubes 1/a (0.5 - 100 ppm)
| Standard Measuring Range: |
1 to 10 ppm |
| Number of Strokes (n): |
10 |
| Time for Measurement: |
approx. 2 min |
| Standard Deviation: |
±10 to 15 % |
| Color Change: |
blue ?> yellow |
| Temperature: |
5 to 40° C |
| Absolute Humidity: |
max. 15 mg H2O / L |
| Reaction Principle: |
HCl + Bromophenol blue ??> yellow reaction product |
| Cross Sensitivity: |
Hydrogen sulfide and sulfur dioxide in the TLV range do not interfere. It is impossible to measure hydrochloric acid in the presence of other mineral acids. Chlorine and nitrogen dioxide are indicated, but with different sensitivities. |
Hydrochloric Acid Detection Tubes 1/a (0.5 - 100 ppm)
