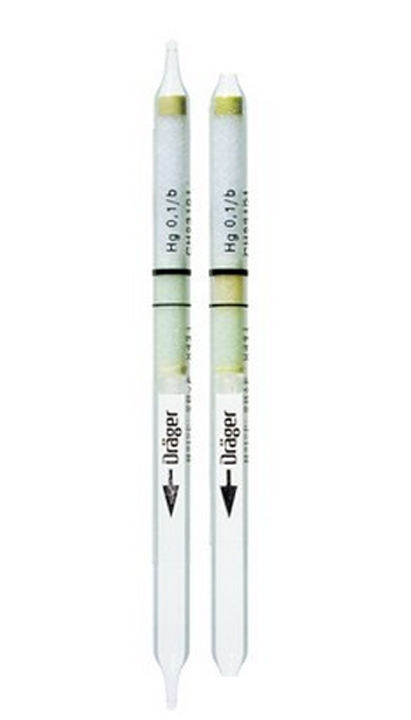

Mercury Detection Tubes 0.1/b (0.1 - 2 mg/m3)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Mercury Detection Tubes 0.1/b (0.1 - 2 mg/m3)
| Standard Measuring Range: |
0.05 to 2 mg/m3 |
| Number of strokes n: |
40 to 1 |
| Time for Measurement: |
max. 10 min |
| Standard Deviation: |
± 30 % |
| Color Change: |
pale yellow grey ??> pale orange |
| Temperature: |
0 to 40°C |
| Absolute Humidity: |
< 20 mg H2O / L |
| Reaction Principle: |
Hg + Cul ??> Cu-Hg-complex |
| Cross Sensitivity: |
Free halogens cause substantial minus errors. It is impossible to measure mercury vapor in the presence of halogens. Arsine, phosphine, hydrogen sulfide, ammonia, nitrogen dioxide, sulfur dioxide and hydrazine in the TLV range do not interfere. |
Mercury Detection Tubes 0.1/b (0.1 - 2 mg/m3)
