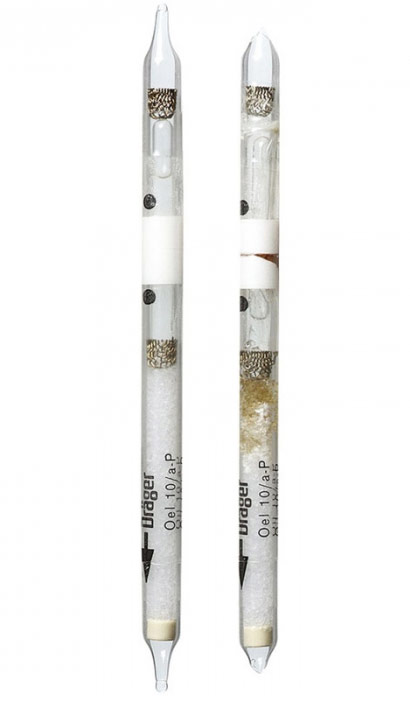

Oil Detection Tubes 10/a-P (0.1 - 1 mg/m3)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Oil Detection Tubes 10/a-P (0.1 - 1 mg/m3)
| Standard Measuring Range: |
0.1 to 1 mg/m3 |
| Color Change: |
white ??> pale beige or yellow |
| Temperature: |
10 to 30 °C |
| Pressure: |
This tube may only be used for depressurized compressed air |
| Reaction Principle: |
Oil + H2SO4 ??> beige-yellow reaction product |
| Cross Sensitivity: |
The total concentration of mineral and synthetic aerosols (mist) and oil vapors is indicated.
Other organic compounds with high molecular weights are indicated as well but with different sensitivity.
Polyethylene glycol and silicone oils are not indicated. |
| Additional Information: |
In combination with a Draeger gas detector pump the oil tube can also be used to analyse the air in work rooms. The measurement period depends upon the oil used. Please find a list of the oils tested under www.draeger.com/voice. |
Oil Detection Tubes 10/a-P (0.1 - 1 mg/m3)
