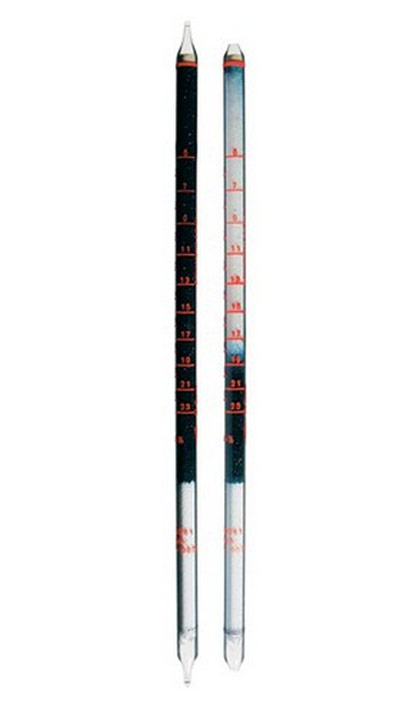

Oxygen Detection Tubes 5%C (5 - 23 Vol.%)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Oxygen Detection Tubes 5%C (5 - 23 Vol.%)
Standard Measuring Range: |
5 to 23 Vol. % |
Number of strokes n: |
1 |
Time for Measurement: |
approx. 1 min |
Standard Deviation: |
± 10 to 15 % |
Color Change: |
blue black ??> white |
Temperature: |
5 to 50 °C |
Absolute Humidity: |
0 to 40 mg H2O / L |
Reaction Principle: |
a) O2 + TiCl3 ??> TiIV-compound + HCl b) Adsorption of HCl by silica gel |
Cross Sensitivity: |
Carbon dioxide, carbon monoxide, solvent vapors, halogenated hydro carbons and N2O do not affect the indication. |
Additional Information: |
These tubes become very warm during measurement, reaching temperatures of approximately 100 °C. Therefore these
tubes should not be used in potentially combustible atmospheres. If in doubt, test the area before using the tube with a combustible gas monitor, before using the tube. |
