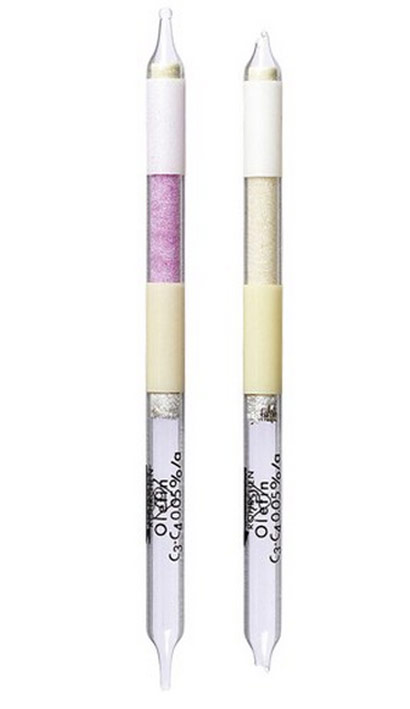

Olefins Detection Tubes 0.05%/a (Propylene, Butylene) (0.04 - 3.2 Vol.%)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapo rs can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Olefins Detection Tubes 0.05%/a (Propylene, Butylene) (0.04 - 3.2 Vol.%)
| Standard Measuring Range: |
0.06 to 3.2 Vol. % Propylene
0.04 to 2.4 Vol. % Butylene |
| Number of strokes n: |
20 to 1 |
| Time for Measurement: |
max. 5 min |
| Standard Deviation: |
± 30 % |
| Color Change: |
violet ??> pale brown |
| Temperature: |
0 to 40 °C |
| Absolute Humidity: |
< 30 mg H2O / L |
| Reaction Principle: |
CH3-CH2-CH=CH2 + MnO4- ??> MnIV +
various oxidation products |
| Cross Sensitivity: |
Many organic compounds with C=C double bonds are indicated,
but with different sensitivities. It is impossible to differentiate between them. It is impossible to measure olefines in the presence of
dialkyl sulfides. |
Olefins Detection Tubes 0.05%/a (Propylene, Butylene) (0.04 - 3.2 Vol.%)
