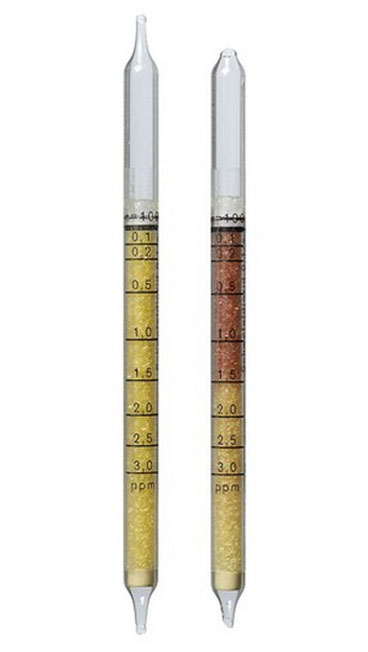

Sulfur Dioxide Detection Tubes 0.01/a (0.1 - 3 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Sulfur Dioxide Detection Tubes 0.01/a (0.1 - 3 ppm)
| Standard Measuring Range: |
0.1 to 3 ppm |
| Number of strokes n: |
100 |
| Time for Measurement: |
approx. 20 min |
| Standard Deviation: |
± 10 to 15 % |
| Color Change: |
yellow ??> orange |
| Temperature: |
10 to 30 °C |
| Absolute Humidity: |
3 to 15 mg H2O / L |
| Reaction Principle: |
SO2 + Na2[HgCl4] + Methyl red ??>
Na2[Hg(SO3)2] + 4 HCl |
| Cross Sensitivity: |
It is impossible to measure sulfur dioxide in the presence of other
acidic gases. |
Sulfur Dioxide Detection Tubes 0.01/a (0.1 - 3 ppm)
