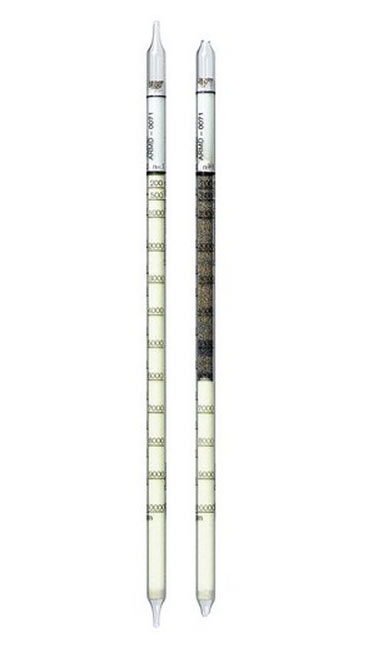

Phosphine Detection Tubes 25/A (25 - 10000 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Phosphine Detection Tubes 25/A (25 - 10000 ppm)
| Standard Measuring Range: |
200 to 10,000 ppm / 25 to 900 ppm |
| Number of strokes n: |
1 / 10 |
| Time for Measurement: |
approx. 1.5 min / approx. 10 min |
| Standard Deviation: |
± 10 to 15 % |
| Color Change: |
yellow ??> dark brown |
| Temperature: |
0 to 40 °C |
| Absolute Humidity: |
< 30 mg H2O / L |
| Reaction Principle: |
PH3 + Au3+ ??> Au (colloidal) |
| Cross Sensitivity: |
Arsine and antimony hydride are indicated, but with lower sensitivities.
Hydrogen sulfide, ammonia, hydrochloric acid and mercaptans are retained in the pre-cleanse layer. |
Phosphine Detection Tubes 25/A (25 - 10000 ppm)
