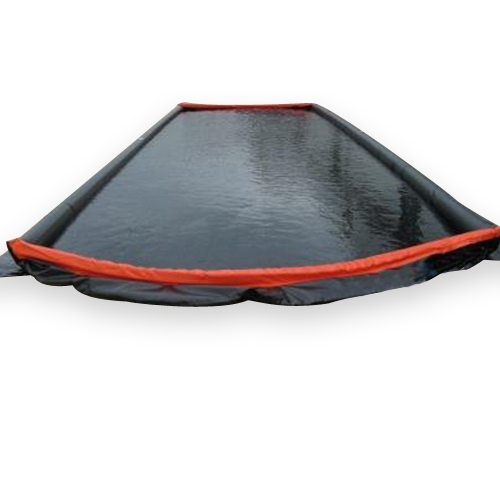

Freedom Series II Air Wall Drive-Through Berms
The Freedom Series II air wall drive-through berms are a one piece construction with air chamber side walls and self rising foam end walls. No assembly! Set up time is quick. Side wall air chambers are equipped with a pressure relief valve to prevent over inflation. End walls can be driven over repeatedly with no damage. These durable berms are a great solution to your secondary containment needs!
- XR-5 8130 30oz
- Drive in / drive out without risking damage to air chambers
- Air chamber side walls with pressure relief valves
- Self supporting end walls with HR-2545 foam collar
- Tread pads available
- 3" - 24" wall sizes
- Can be manufactured to meet any size specifications or requirements
- High quality pressure relief valves installed
- Ground covers available
- All types of materials available
- No loose Parts
- No Assembly
- Field Repair Kits
- In House Repairs
- 10 Year Manufacturer's Warranty
- Great secondary containment product when storage and weight are concerns!
Made In America!
Freedom Series II Air Wall Drive-Through Berms
Standard Dimensions:
| Size |
Folded Dimensions |
Berm Weight |
Shipping Dimensions |
Shipping Weights |
| 10' x 10' x 1' |
22" x 28" x 6" |
68 lbs. |
40" x 48" x 11" |
108 lbs. |
| 12' x 12' x 1' |
24" x 30" x 8" |
84 lbs. |
40" x 48" x 11" |
124 lbs. |
| 12' x 26' x 1' |
30" x 34" x 9" |
149 lbs. |
40" x 48" x 15" |
189 lbs. |
| 12' x 36' x 1' |
34" x 36" x 12" |
184 lbs. |
40" x 48" x 18" |
224 lbs. |
| 12' x 50' x 1' |
40" x 40" x 18" |
242 lbs. |
40" x 48" x 22" |
282 lbs. |
| 14' x 54' x 1' |
42" x 46" x 24" |
290 lbs. |
45" x 48" x 30" |
330 lbs. |
| 15' x 50' x 1' |
42" x 46" x 24" |
290 lbs. |
45" x 48" x 30" |
330 lbs. |
| 15' x 66' x 1' |
44" x 47" x 36" |
355 lbs. |
45" x 48" x 42" |
395 lbs.
|
