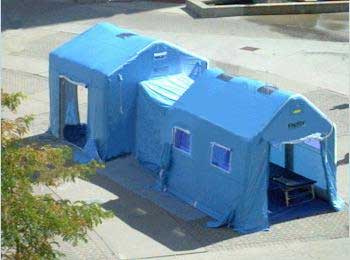

FSI DAT Series Pneumatic Isolation Shelter 24'W x 40L x 11'H
All DAT series shelters are supplied fully equipped and ready to be placed in service. Simply roll out, inflate, tie/stake down, and commence operations
Every shelter with a width of over 11 ft - regardless of length and overall size offers a top center air berm running the entire length of the unit at the roof line and secondary full center length air berms running on either side of the main center berm approx. 18 - 24" off center.
All HVAC ducts are approx. 30” L X 19” diameter. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above entry and exit doors. Units can attach to a second FSI shelter or shower. Simply inflate the unit and commence use in approx. 1 - 4 minutes.
Possible Shelter Uses:
- Command
- Field hospital
- Medical surge capacity
- Temporary housing
- Portable morgue
- Athletic
- Training/cool down
- Isolation
- Crime scene privacy shelter
- Anteroom
Shelter includes:
- Full privacy zipper closure double door ‘airlock’ in and out dirty entry/clean exit doors
- Clear vinyl windows w/ full velcro closure flaps for privacy/night use
- HVAC Air ducts w. tie closures
- Zippered connector flaps on each end to attach one unit to another
- Air inflation valve
- Air inflation hose w/ safety cord
- Pressure relief valve
- Tie down ropes
- (4) D-rings
- Repair kit
- Manual
- Carrying bag
- (2) Upper air vents w/ with full velcro closure for isolation applications
- Hammer
- Electric inflator/deflator
- High pressure compressed air fill hose
- Universal high pressure SCBA fitting
FSI DAT Series Pneumatic Isolation Shelter 24'W x 40L x 11'H
| DAT7500-IS |
| Measurements: |
Approx. 24 W X 40’ L X 11’ H - 960ft2 |
| Weight: |
945 lbs. |
| Air pressure internally once inflated: |
4.3 psi |
| Total Weight: |
1055 g/m2 |
| Thickness: |
0.90 mm |
| Cut strip tensile strength: |
Warp = 450 lbs/in
Weft = 404 lbs/in |
| Elongation: |
Warp = 30%
Weft = 47% |
| Tongue tear: |
Warp = 87 lbs
Weft = 100 lbs |
| Adhesion: |
Warp = 9.4 lbs/in
Weft = 8.9 lbs/in |
| Density: | 30 X 24.5 |
| Certifications: |
ANSI 113 compliant |
| Frame |
| Material: |
- Heavy Duty 1100 Dtex polyester coated w/ plastomer on both sides
- UV/Chemical resistant
- Quadruple overlapped and glued |
| Canopy |
| Material: |
- Heavy duty 100% nylon twill (3/5) w/ PU white pigment inner coating
- UV/chemical resistant/fire retardant
- UV resistant and water repellent w/ a hydrostatic resistance of 250 psi + -
- Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508
- Fire resistance meets and exceeds CPAI 84 SECTION 5 1995
- US Fed. Test CFR.1610
- Meets NFPA701 Flammability Test method 1 (2004)
- NFPA 702 w/ ‘A’ burn scale rating
- All seams double stitched and coated both sides. |
| Dimensions: |
Approx. 23mm X 57/58 |
| Weight: |
Approx. 1.230 gr/m2 |
| Inner Canopy |
| Material: |
- 100% Nylon 210T Antron Water Resistant Polyurethane Coated 57/58"
- Flame Retardant to meet 'NFPA-701 TM-1'
- Anti-fungus/Anti-mildew
- Opaque |
| Color: |
White |
| Floor |
| Material: | PVC of 0.58mm thickness (1,000 Dtex, 18 X 18 polyester) |
| Weight: |
660 gr/mm2 |
| Width: |
60 in |
