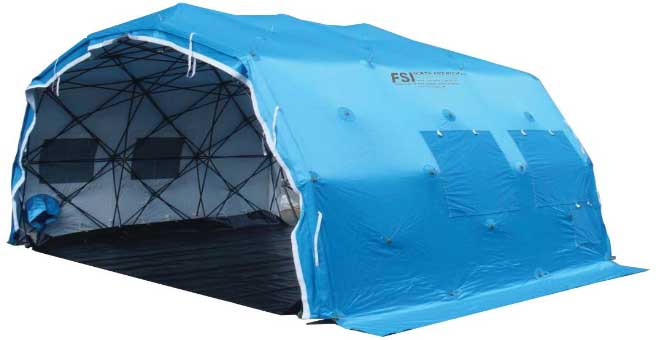

FSI DAT 'QE' 'Quick Erect' Shelters 13'W x 11.5'L x 8.8'H
All QE series shelters are made from an articulating strut system, corrosion and chemical resistant, carbon composite tubing. These shelters are easily deployed without external assistance devices and set up in 1-5 minutes. Simply roll out, lock support struts, extend frame until locked, tie/stake down, and commence operations. Standard colors are ‘EMS’ blue, ‘army’ green, ‘red cross’ white. Other colors available P.O.A.
Possible Shelter Uses:
- Command
- Field hospital

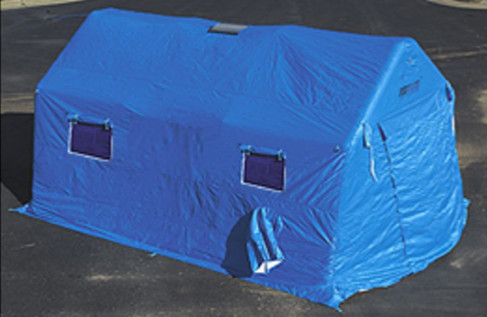

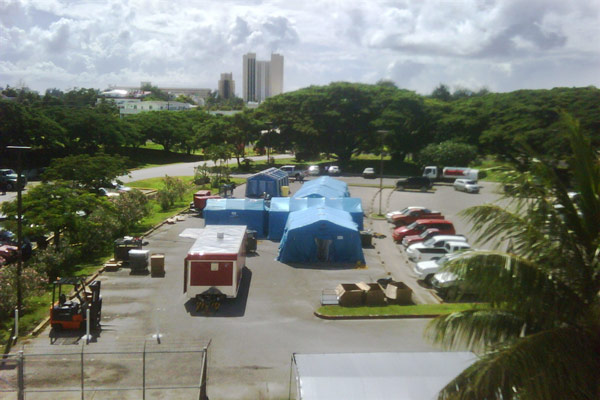

- Medical surge capacity
- Temporary housing
- Portable morgue
- Athletic
- Training/cool down
- Isolation
Shelter includes:
- (2) windows - one on each side
- (2) skylights
- (2) 17” HVAC/clothes inlet/outlets with tie closuress
- (4) stainless steel stakes & ground anchor points
- Full privacy zipper closure and full screen zipper closure slip in and out dirty entry/clean exit doors
- Multiple cross and center divider sections offered for privacy/undress/ redress/other
- Incredible stability even in high wind con
- Tie down ropes
- (4) D-rings
- Repair kit
- Manual
- Shelter Sleeve
- (2) upper air vents
- Hammer
- Replacement Struts (DATQEPRRS) available here.
FSI DAT 'QE' 'Quick Erect' Shelters 13'W x 11.5'L x 8.8'H
| DAT QE1310 |
| Measurements: |
Approx. 13' W X 11.5' L X 8.8' H - 150ft2 |
| Weight: |
180 lbs. |
| Wind Resistance: |
Approx. 70 mph |
| Canopy |
| Material: |
- Heavy duty 100% nylon twill (3/5) w/ PU white pigment inner coating
- UV/chemical resistant/fire retardant
- UV resistant and water repellent w/ a hydrostatic resistance of 250 psi + -
- Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508
- Fire resistance meets and exceeds CPAI 84 SECTION 5 1995
- US Fed. Test CFR.1610
- Meets NFPA701 Flammability Test method 1 (2004)
- NFPA 702 w/ ‘A’ burn scale rating |
| Dimensions: |
Approx. 23mm X 57/58 |
| Weight: |
Approx. 1.230 gr/m2 |
| Inner Canopy |
| Material: |
- 100% Nylon 210T Antron Water Resistant Polyurethane Coated 57/58"
- Flame Retardant to meet 'NFPA-701 TM-1'
- Anti-fungus/Anti-mildew
- Opaque |
| Color: |
White |
| Floor |
| Material: | 1,000 denier Nylon coated w/ PU |
| Tensile Strength: |
2545N/2360 |
| Tear Strength: |
106/102N |
| Weight: |
490 g/yd |
| Frame/Hub |
| Material: |
Forged high density polyfibers |
| Outer Diameter: |
15.72±0.25 |
| Wall Thickness: |
1.68±0.25 |
| Carbon Content: |
25±2.0% |
| Specific Gravity: |
1.8~2.1 |
