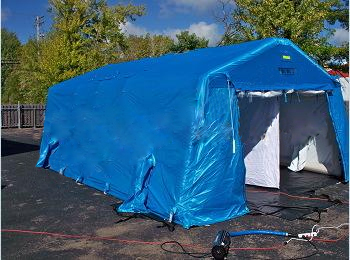

FSI Decon Shower Shelter System
The FSI model DAT 6140SS is a complete outer canopy and removable decon pool, removable shower fixtures and curtain lines allowing this same system to be converted into a 333 sq ft. command or other use shelter system in minutes. As a shower - install decon pool and shower heads and curtains in approx. 5 minutes and have a 3 line 3 or 4 stage Mass Casualty Decon Shower System that can decon 3 to 6 ambulatory, 3 non-ambulatory, or any combination. Undress/Detergent Shower/Rinse Shower/Redress configuration. 5ft L undress area/ 5ft L detergent shower area/5ft L rinse shower area/ 5ft L redress area. As a shelter simply remove decon pool/shower heads/shower curtains as desired in approx. 5 minutes and have a complete 333 sq ft shelter system complete with outer canopy and inner insulating canopy that is ready for use.
All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above entry and exit doors. Units can attach to a second FSI shelter or shower. Simply inflate the unit and commence use in approx. 1 - 4 minutes (size of shelter dependent).
Every shelter with a width of over 11 ft - regardless of length and overall size offers a top center air berm running the entire length of the unit at the roof line and secondary full center length air berms running on either side of the main center berm approx. 18 - 24" off center. FSI offers a total of five 8” - 12" diameter lateral roof support air berms - size of shelter dependent. FSI shelters lead the industry in terms of weight/snow bearing capabilities/strength. Whatever the specification at hand FSI meets and exceeds herein.
System includes:
- Full privacy zipper closure and full screen zipper closure slip in and out dirty entry/clean exit doors
- (2) High pressure & (2) Low pressure inflation/deflation valves
- (2) Pressure relief valves
- Air inflation hose w/ safety cord
- Tie down ropes
- (4) D-rings
- Repair Kit
- Manual
- Shelter sleeve
- (2) Upper air vents
- Hammer
FSI Decon Shower Shelter System
| DAT6140SS |
| Inflated Measurements: |
14.5’ W x 23’ L x 9’ H |
| Weight: |
420 lbs. |
| Air pressure internally once inflated: |
4.3 psi |
| Total Weight: |
1055 g/m2 |
| Thickness: |
0.90 mm |
| Cut strip tensile strength: |
Warp = 450 lbs/in
Weft = 404 lbs/in |
| Elongation: |
Warp = 30%
Weft = 47% |
| Tongue tear: |
Warp = 87 lbs
Weft = 100 lbs |
| Adhesion: |
Warp = 9.4 lbs/in
Weft = 8.9 lbs/in |
| Density: | 30 X 24.5 |
| Certifications: |
ANSI 113 compliant |
| Frame |
| Material: |
- Heavy Duty 1100 Dtex polyester coated w/ plastomer on both sides
- UV/Chemical resistant
- Quadruple overlapped and glued. |
| Canopy |
| Material: |
- Heavy duty 100% nylon twill (3/5) w/ PU white pigment inner coating
- UV/chemical resistant/fire retardant
- UV resistant & water repellent w/ a hydrostatic resistance of 250 psi + -
- Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508
- Fire resistance meets and exceeds CPAI 84 SECTION 5 1995
- US Fed. Test CFR.1610
- Meets NFPA701 Flammability Test method 1 (2004)
- NFPA 702 w/ ‘A’ burn scale rating
- All seams double stitched and coated both sides. |
| Inner Canopy |
| Material: |
- 100% Nylon 210T Antron Water Resistant Polyurethane Coated 57/58"
- Flame Retardant to meet 'NFPA-701 TM-1'
- Anti-fungus/Anti-mildew
- Opaque |
| Color: |
White |
| Floor |
| Material: | PVC of 0.58mm thickness (1,000 Dtex, 18 X 18 polyester) |
| Weight: |
660 gr/mm2 |
| Width: |
60 in |
FSI Decon Shower Shelter System
