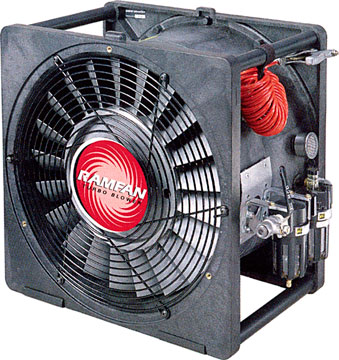

16" Intrinsically Safe Air Driven Blower/Exhauster, AFi50xx
The AFi50xx intrinsically safe, hazardous location blower/exhauster provides protection and peace of mind to the user. The large, air driven AFi50xx ventilator is stackable in storage or
during operation, and it exhausts the air outside of the duct, not in
airstream.
- Intrinsically safe for use in adverse atmospheres
- Motor is ATEX certified II 2 GD c T4 and all materials
used in the construction of AFi-Series fans are made from
anti-static materials
- Durable, anti-static glass reinforced ABS housing is
lightweight, corrosion proof and chemical resistant.
- 21-Blade Polymer TurboForce Impeller for increased
shatter resistance
- High strength, anti-static glass reinforced ABS housing is lightweight and corrosion proof
- chemical resistant
- 1 reversible integral 16” (40cm) duct adapter for attaching conductive ducting to either the intake or exhaust side of the blower
- Exhausts outside of duct, compressed air not in airstream
- Units come complete with filter, motor lubricator, air
control valve and grounding clamp
*Freight shipping extra charges may apply. Call or E-mail for a freight quote.
16" Intrinsically Safe Air Driven Blower/Exhauster, AFi50xx
| Model:
|
AFi50xx
|
| Free Air*:
|
3,200 cfm
|
| Duct Adapter (s):
|
2
|
| Air Consumption:
|
40 cfm
|
| Induction Ratio:
|
80:1
|
| Dimensions (h/w/d):
|
19/21/16 in.
|
| Weight:
|
43 lbs
|
| Noise:
|
89 dB
|
| Motor:
|
GAST 4AM-NRV-50C
|
| * Values are shown for single-stage piston-type air compressors operating at
85% efficiency, and working on intake air under standard conditions.
|
