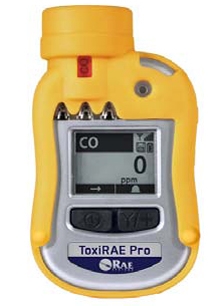

ToxiRAE Pro Personal Monitor for Electrochemical Sensors
The electrochemical version of the ToxiRAE Pro can be configured to measure for hydrogen sulfide, carbon monoxide, ammonia, chlorine, hydrogen cyanide, nitric oxide, phosphine, sulfur dioxide, and more. With the ability to swap smart sensors on the spot, the ToxiRAE Pro is a truly versatile single gas monitor.
The ToxiRAE Pro offers datalogging capability and is equipped
with a “Man Down” alarm and policy enforcement to ensure
greater safety while making sure compliance-related procedures
such as periodic testing and calibration are performed. The rechargeable Li-Ion battery allows the meter to last over 30 hours on a full charge.
ToxiRae Pro comes with:
- ToxiRAE Pro monitor with sensor and wireless option as
specified, rechargeable battery, alligator clip, and protective rubber
boot installed
- Charging and PC communication cradle
- PC communication cable
- AC adapter (100 to 240 V, 50/60 Hz AC to 12 V DC)
- Calibration adapters
- Quick Start Guide
- CD with documentation
- CD with ProRAE Studio II monitor configuration and data management software
- Calibration and test certificate
- Warranty/registration card
ToxiRAE Pro Personal Monitor for Electrochemical Sensors
| Size
|
4.6" H x 2.4" W x 1.2" D (118 x 60 x 30 mm)
|
| Weight
|
7.76 oz. (220 g)
|
| Sensor
|
Nondispersive infrared sensor
Range: 0 to 50,000 ppm
Resolution: 100 ppm
|
| Battery
|
Rechargeable Li-ion battery
- Operating time: > 11 hours (normal operation 25 ̊ C / 77 ̊ F, non-wireless)
- Recharge time: < 4 hours through charging cradle
|
| Display
|
Graphical LCD display with white LED backlighting (activated when monitor is
in alarm or with a button press)
|
| Display Readout
|
- Real-time reading of VOC concentrations in parts per million or mg/m 3 ; battery status;
data logging on/off; wireless on/off and reception quality
- STEL, TWA, and peak values
|
| Keypad
|
2 buttons for operation and programming
|
| Sampling
|
Diffusion
|
| Calibration
|
Automatic with AutoRAE 2 Test and Calibration System 2 or manual
|
| Alarm Modes
|
-Wireless remote alarm notification 1 ; audible (95 dB @ 30 cm), vibration, visible alarm
(flashing bright red LEDs), and on-screen indication of alarm conditions
- Man Down Alarm with pre-alarm and real-time remote wireless notification
|
| Datalogging
|
- Continuous datalogging 3 with a three-month capacity (at one-minute intervals)
- User-configurable datalogging interval (from 1 to 3,600 seconds)
|
| Communication and Data Download
|
- Data download and instrument set-up on PC via charging and PC comm. cradle
- Data download via AutoRAE 2 Automatic Test and Calibration System
- Wireless data and status transmission 1 via built-in RF modem (optional)
|
| Wireless Network
|
Honeywell Safety Suite or Closed-Loop Network with the EchoView Host
|
| Wireless Frequency
|
ISM license-free bands
|
| Wireless Range (Typical)
|
ToxiRAE Pro to Mesh Router or EchoView Host ~ 660 feet (200 meters)
ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh modems ~ 330 feet
(100 meters)
|
| Operating Temperature
|
-4° to 131°F (-20° to 55°C)
|
| Humidity
|
0% to 95% relative humidity (non-condensing)
|
| Dust and Water Resistance
|
IP-65
|
| Hazardous Location Approvals
|
Unit cannot be used in hazardous area
|
| CE Compliance (European Conformity)
|
EMC directive: 2004/108/EC. R&TTE directive: 1999/5/EC
|
| Warranty
|
- Two years on non-consumable components
- One year on all other sensors, battery, and other consumable parts
|
Sensor Options:
| Ammonia (NH3)
|
0 to 100 ppm
|
1 ppm
|
G02-B810-100
|
| Carbon Monoxide (CO)
|
0 to 500 ppm
|
1 ppm
|
G02-B210-100
|
| Carbon Monoxide (CO), Ext. Range
|
0 to 2,000 ppm
|
10 ppm
|
G02-BD10-100
|
| Carbon Monoxide (CO), H2-comp.
|
0 to 2,000 ppm
|
10 ppm
|
G02-BF10-100
|
| Chlorine (Cl2)
|
0 to 50 ppm
|
0.1 ppm
|
G02-BD10-100
|
| Chlorine Dioxide (ClO2)
|
0 to 1 ppm
|
0.03 ppm
|
G02-BA10-100
|
| Ethylene Oxide (EtO-A)
|
0 to 100 ppm
|
1 ppm
|
G02-BJ10-100
|
| Ethylene Oxide (EtO-B)
|
0 to 10 ppm
|
0.1 ppm
|
G02-BK10-100
|
| Ethylene Oxide (EtO-C), Ext. Range
|
0 to 500 ppm
|
10 ppm
|
G02-BL10-100
|
| Formaldehyde (HCHO)
|
0 to 10 ppm
|
0.05 ppm
|
G02-BQ10-100
|
| Hydrogen (H2)
|
0 to 1,000 ppm
|
10ppm
|
G02-BM10-100
|
| Hydrogen Cyanide (HCN)
|
0 to 50 ppm
|
0.5 ppm
|
G02-B710-100
|
| Hydrogen Sulfide (H2S)
|
0 to 100 ppm
|
0.1 ppm
|
G02-B110-100
|
| Hydrogen Sulfide (H2S), Ext. Range
|
0 to 1,000 ppm
|
1 ppm
|
G02-BN10-100
|
| Methyl Mercaptan (CH3-SH)
|
0 to 10 ppm
|
0.1 ppm
|
G02-BH10-100
|
| Nitric Oxide (NO)
|
0 to 250 ppm
|
0.5 ppm
|
G02-B410-100
|
| Nitrogen Dioxide (NO2)
|
0 to 20 ppm
|
0.1 ppm
|
G02-B510-100
|
| Oxygen (O2)
|
0 to 30% Vol.
|
0.1% Vol.
|
G02-BE10-100
|
| Phosphine (PH3)
|
0 to 20 ppm 0
|
0.1 ppm
|
G02-B910-100
|
| Sulfur Dioxide (SO2)
|
0 to 20 ppm
|
0.1 ppm
|
G02-B310-100
|
