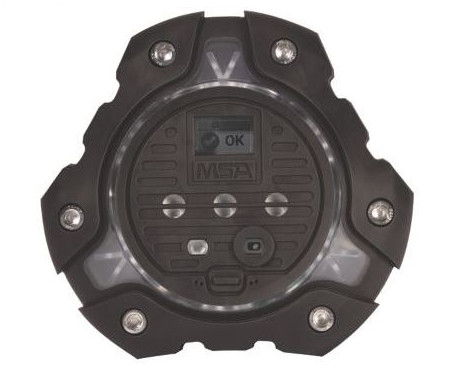

ALTAIR io360 Gas Detector
The ALTAIR® io360 Gas Detector offers four-gas detection for high risk areas, including confined spaces, perimeter and general area monitoring. The ALTAIR io360 combines the simple set-up of a smart home device, while allowing local or remote monitoring of hazardous areas. The ultra-long battery life keeps the focus on safety and less on maintenance. The ALTAIR io360 delivers IP68 ruggedness and best-in-class, XCell sensors, the performance expected from MSA.
- Four-gas detection with a catalytic bead sensor
- Compact, portable design
- Ultra-long battery life with 50-60 days of 4-gas runtime (80 or more days as toxic & O2)
- Easy set-up, similar to a smart home product
- Factory pre-configured networks that are ready-to-go out of the box
- Android or iOS Safety io Grid mobile app makes setup and configurations simple
- Connect up to 32 ALTAIR io360 Gas Detectors with MSA HUB to form mesh network, share alarms, and extend range
- MSA HUB connects with Safety io Grid via wifi or ethernet connectivity
- Integrated D-ring and 50lb (22kg) magnet provides placement options
- IP68 toughness that can withstand submersion, sprays, and weather
- 10ft (3m) drop tested
ALTAIR io360 Gas Detector
| Warranty |
4 years, Oxygen Sensor: 2 years, Low-energy Combustible: 1 year |
| Durability |
Drop Test: 10 ft. (3 m), Ingress Protection: IP68 |
| Temperature |
Normal Operating: –4° to 131° F (–20° to 55° C), Extending Operating: –40° to 131° F (–40° to 55° C), Storage: 32 to +95 °F (0 to 35 °C) |
| Humidity |
Intermittent: 5%–95%, Non-condensing: 15%–90% |
| Power |
Batteries: 3 replaceable lithium thionyl chloride batteries, Runtime: nominally 50-60 days 4-gas, 80-85 days without combustible sensor |
| Physical |
Weight: 1.6 lb. (0.7 kg), Dimensions: 5.2” x 5.6” x 2.7” (132 x 142 x 69 mm) |
| Alarms |
Audible: 90 dB @ 1 ft. (0.3 m), Visual: RGB LED |
| Data Logging |
Periodic, Event, Instrument, Calibration logs stored on detector (at least 2 months) and sent to Safety io Grid. |
| Range |
Up to 1000 ft. (~300 m) line of site HUB to detector 2 mesh hops to extend range. |
| Radio |
915 MHz, Bluetooth, RFID |
| MSA Hub Specifications |
| Warranty |
4 years |
| Durability |
Ingress protection IP67 |
| Temperature Range |
–4° to 140° F (–20° to +60° C) for hazardous locations |
| Humidity |
10 to 90% relative humidity, non-condensing |
| Power |
Nominal: 24 V DC line power, Range: 6 V to 32 V |
| Radio |
915 MHz, Bluetooth, 2.4 GHz Wi-Fi (a,b,g,n) |
| Ethernet |
10/100 mbit |
Sensor Specifications
| Gas |
Range |
Resolution |
| LEL |
0-100% |
1% |
| O2 |
0-30% |
O.l% |
| CO |
0-1999 ppm |
1 ppm |
| H2S |
0-200 ppm |
1 ppm |
ALTAIR io360 Gas Detector
Basic Configuration Includes:
- Monochrome display
- Integral pump
- Datalogging
- Rechargeable Li-ion battery pack
- Charger
- Calibration cap
- CD Manual
Kit Adds:
- Monochrome or color display option
- 10-ft sampling line
- 1-ft pump probe
ALTAIR io360 Gas Detector
