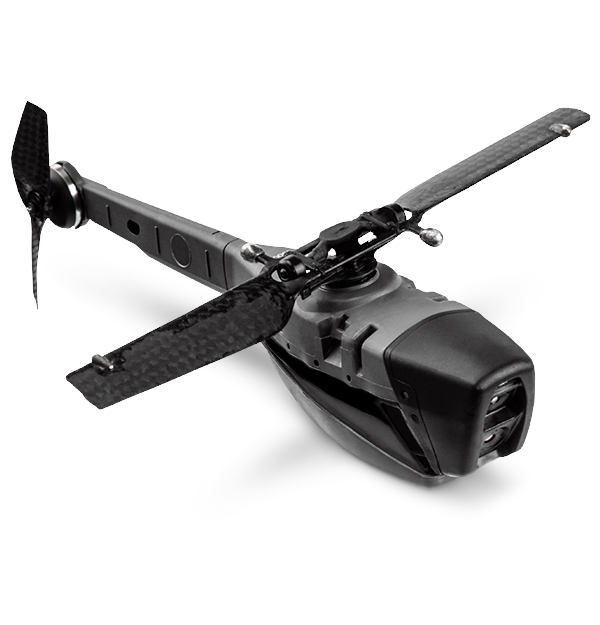

Black Hornet Airborne Personal Reconnaissance System
The Black Hornet PRS equips the non-specialist dismounted soldier with immediate covert situational awareness (SA). Game-changing EO and IR technology bridges the gap between aerial and ground-based sensors, with the same SA as a larger UAV and threat location capabilities of UGVs. Extremely light, nearly silent, and with a flight time up to 25 minutes, the combat-proven, pocket-sized Black Hornet PRS transmits live video and HD still images back to the operator. Sold to qualified purchasers.
With a less-than 33-gram UAV, GCS with integral UAV containers,
Black Hornet PRS is compact and requires minimal training. An
upgraded GCS features removable mission data SD cards, increased
processing capability, improved user interface, robust chargers, and
enhanced vision-based navigation. Imagery is transmitted through
encrypted data link with ranges up to 2 km to safely engage targets
beyond visual line-of-sight. The world’s smallest and lightest, the
proven Black Hornet PRS provides dismounted soldiers autonomous,
mission-critical SA.
SQUAD-LEVEL IMMEDIATE COVERT SITUATIONAL AWARENESS
Save lives and minimize collateral damage. Detect and identify threats day and night without being detected. Increase speed and expand maneuver options.
COVERT AIRBORNE SENSOR
Extraordinarily low visual and audible signatures and a light, small profile allow covert operation and increased security for dismounted soldiers.
BEYOND VISUAL LINE-OF-SIGHT CAPABILITY
Expand visual range in complex and urban environments. Rapidly engage targets beyond visual line-of-sight, and conduct real-time weapon effectiveness assessment.
Black Hornet Airborne Personal Reconnaissance System
Item |
Rotor diameter: |
123 mm (4.8 in) |
Total length: |
168 mm (6.6 in) |
Weight: |
<33 grams (1.16 oz) |
Signature |
Visual detection: |
Best in class, details upon request |
Audio: |
Best in class, details upon request |
Payload |
Replaceable: |
Yes |
Day Imager: |
2 EO Cameras |
Night Imager: |
Fused thermal and EO with user selectable LED light |
Performance |
Endurance: |
Up to 25 minutes |
Max. speed: |
6 m/sec ground speed (~20 ft/sec) |
Environment |
Temperature: |
-10°C to +43°C |
Wind: |
15 knots/gust 20 knots |
Precipitation: |
2.5 mm (.1 in)//hr (Light rain) |
Data Link |
Frequency: |
Details on request |
Radio Range: |
2 km (1.24 mi) |
Performance: |
Encrypted, dynamic power, frequency hopping, beyond line-ofsight |
Resolution |
EO Video: |
640x480 |
EO Snapshot: |
1600x1200 |
Thermal Imaging Video: |
160x120 |
Thermal Imaging Snapshot: |
160x120 |
Flight modes |
Auto and Manual Hover & Stare Route and user selectable waypoint actions Automatic return Lost link |
Navigation |
GNSS navigation Vision Base Navigation for GPS-denied and indoor operation (upgrade option) Embedded Vector and Raster maps (upgrade option)
|
Mission Data |
AES 256 encrypted Video, Snapshots, and Metadata Removeable 64 Gb SD-card for mission data AES 256 STANAG 4609 and Cursor on Target (COT) compliant ATAK Compatible Can be integrated with selected BMS
|
Launch Time |
30-120 Seconds depending on launch mode |
Black Hornet Airborne Personal Reconnaissance System
Black Hornet Airborne Personal Reconnaissance System
