Clip4 2-Year Continuous 4-Gas Detector
BW Clip4 is a low-maintenance, always-on four gas detector designed to run for 2 years without needing to be charged or have sensors replaced. The meter detects combustible gases (%LEL), Oxygen (O2), Carbon Monoxide (CO), and Hydrogen sulfide (H2S) and is compact, user-friendly, and easy to wear. The unit is backed by a two year warranty.
Features:
- Compact profile and easy to wear, even in tight spaces
Durable with a built-in concussion proof boot
- Simple, user-friendly one button operation
- Intuitive LCD icons
- Real-time gas readings on easy-to-read LCD screen
- Daily full function self-test of sensors, battery status, circuit integrity, and audible/visual alarms

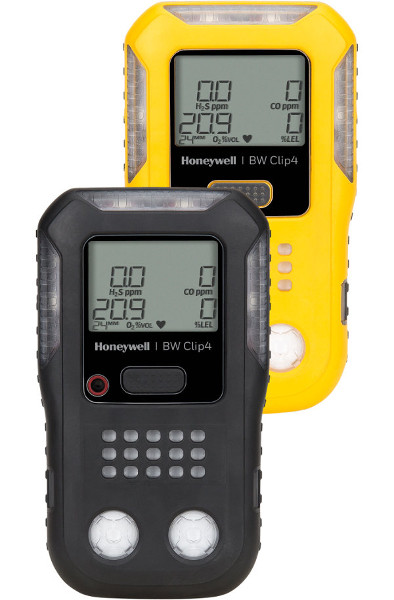

- Available in yellow (BWC4-Y-N) or black (BWC4-B-N)
- Compatible with IntelliDoX docking system and instrument management system
Clip4 2-Year Continuous 4-Gas Detector
- SIZE: 4.7 x 2.7 x 1.3 in. / 12.0 x 6.8 x 3.2 cm
- WEIGHT: 8.2 oz. / 233 g
- OPERATING TEMPERATURE: -4 to +131°F / -20 to +50°C
- HUMIDITY: 5 - 95% RH (non-condensing) continuous
- INGRESS PROTECTION: IP68
- ALARMS AND TYPE: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)
- SELF-TEST: Activated detectors automatically perform one internal diagnostic
test every 24 hours (sensors, battery, and circuitry).
- TYPICAL BATTERY LIFE: Two years, continous operation
- EVENT LOGGING: 70 most recent events
- USER OPTIONS:
- Adjust STEL period (5-15 minutes in 1 minute intervals)
- Calibration span levels
- Calibration interval
- Bump test interval
- Select combustible gases measurement: 0-100% LEL
(Lower Explosive Limit) or Methane gas 0-5.0% v/v
- Calibration due date (1 to 365 days, or set to zero for off)
- Individual sensor enable/disable
- Stealth mode
- CERTIFICATIONS AND APPROVALS:
- Class I, Div 1, Group A, B, C, D
- Class I, Zone 0, Group IIC
- ATEX: II 1G Ex ia IIC T4 Ga
- IECEx: Ex ia IIC T4 Ga
- X: Conforms to all applicable European directives.
- WARRANTY: Full two-year warranty including sensors and battery
