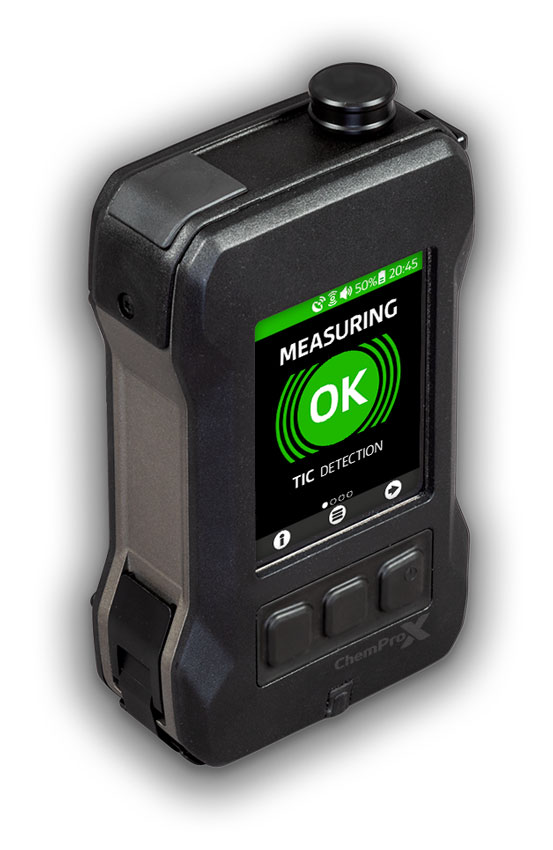

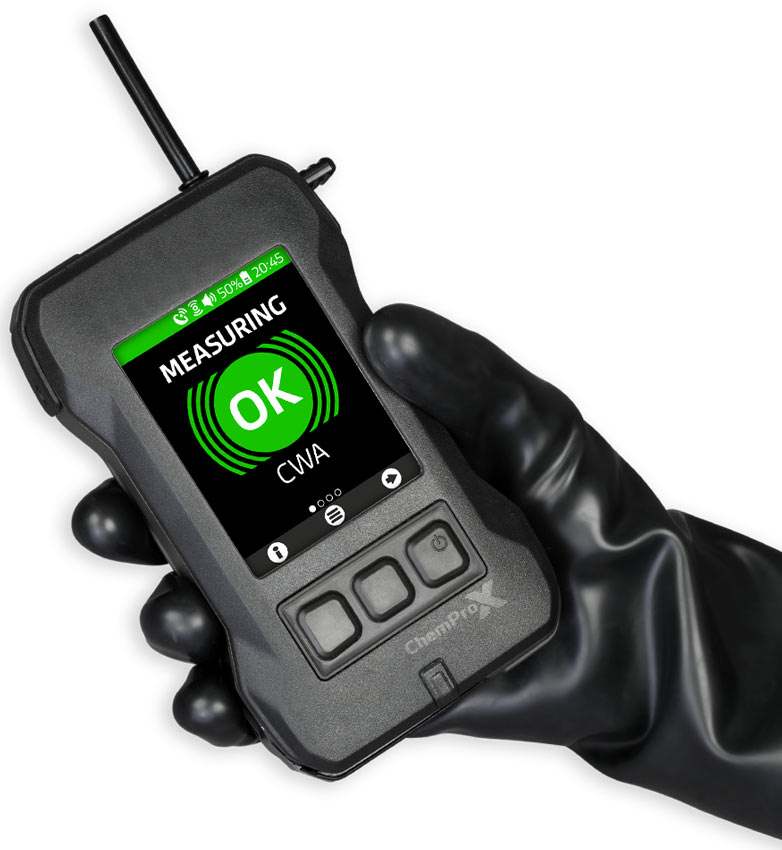

ChemProX Handheld Chemical Detector
ChemProX belongs to a new generation of chemical detectors, enabling full situational-awareness during field operations. With an intuitive User Interface, operators are not alone in the field, therefore shared real-time location and detection information between the team members and the Command Center can be crucial for a successful result.
ChemProX is the only chemical detector of its class which allows for real-time full situational-awareness. Its detection network is expandable up to 10 detectors per group, and features a secure data transmission by radio, which is complemented and expanded by a WIFI connection. ChemProX establishes the communication between each team member and the Command Center.
ChemProX features a double usage possibility for both real and simulated situations, discarding the need for extra training devices or expensive simulators. ChemProX has a built-in simulation mode, allowing different kinds of realistic training scenarios without endangering the users. A chemical alarm can be triggered using Bluetooth sources, and more complex simulations can be created using Mobile C&C and Training Software. This software allows the instructor to create alarms to his team and mark areas of the map as hazardous zones.
ChemProX is an orthogonal detector whose performance relies on an unique and enhanced open-loop Ion Mobility Spectrometry (IMS) technology. Basing its reliability in this technology, ChemProX benefits from new additional sensors which reduce the false alarm rate of the detector, and allows the detection of an even wider range of chemical agents.
Environics recommends confidence testing every 90 days or if you think there is an issue with the unit.
Key Features:
- Widest range of detectable chemicals (CWA/TIC)
- Wireless network connectivity
- Built-in GPS and group location
- Simulation training mode
- Chemical database and instructions
- Optimized usability
- Lowest maintenance costs in its
class
Applications:
- Hazardous area perimeter definition
- Battlefield detection and monitoring
- Chemical reconnaissance and surveillance
- Locating leaks and faulty containers
- Transportation hubs monitoring
- Customs and border control
- Mass and VIP events security
ChemProX Handheld Chemical Detector
| Size: |
Approx. 160 x 100 x 50 mm (6.3”L x 3.9”W x 2”D) |
| Weight: |
Approx. 770 g (27 oz.) (w/Li-Ion battery) |
| Detection Technology: |
Orthogonal detection using: |
| Open-loop (aspirated) IMS cell |
Multiple semiconductor sensors |
| Detection Modes: |
CWA, TIC |
| Training: |
Built-in training mode |
| Connectivity: |
WLAN, WPAN, Radio Data USB memory stick Ethernet (optional accessory)
Up to 10 device per group with radio data
|
| Battery: |
Easily interchangeable Li-Ion rechargeable and commercial available alkaline (3xAA) packs Battery hotswap with power bank |
| Operating Hours: |
Up to 8 hours |
| Battery Recharge Time: |
Approx. 5 hours (with standard mains power charger) |
| Power: |
110 – 250 VAC, 50 – 60 Hz |
| User Interface: |
3,5” Full color graphical LCD display and 3 operation keys |
| Sampling: |
Internal pump with continuous airflow |
| Calibration: |
No calibration is required, only a simple confidence check |
| Temperature (Operating): |
-32 °C to 55 °C (-25.6 °F to 131 °F) MIL-STD-810G |
| Temperature (Storage): |
-46°C to 85 °C (-50.8 °F to 185 °F) MIL-STD-810G |
| Alarm Indication: |
Audible alarm Visual alarms (display / LED) |
| Humidity: |
0-95% non-condensing MIL-STD-810G |
| Dust & Water Resistance: |
MIL-STD-810G Blowing sand, dust, and water immersion when inlet is closed |
| Shock & Vibration Resistance: |
MIL-STD-810G Highly resistant to shock and vibration Drop resistance 1,22m |
| EMI/RFI Interference: |
MIL-STD-461G / MIL-STD-1275D |
| Additional MIL-STD Compliance: |
Tested against relevant parts of MIL-STD-810G, MIL-STD-461G, MIL-STD-1275D* |
| Other Features: |
User adjustable data logging
ChemProX Interface Software
Team display
Agent database
Rapid response instructions |
| Warranty: |
1-year standard warranty
Extended and comprehensive warranties available |
ChemProX Handheld Chemical Detector
Features of ChemProX:
- Orthogonal Detection
- Trend Line
- Datalogging
- Consumables - only simple dust filter
- MIL-STD-810G Tested
- Water/dust resistance (IP67)
- Explosive atmosphere certificate (MIL-STD-810G)
- Detection mode/library change in hot-zone
- Full color display
- Battery hot-swap possibility (with power bank)
- Chemical database & Instructions
- User Interface Program included
- Command & Control Software included
- Radio Data communication between devices
- Wireless device networking
- WLAN
- Build-in Training/Simulation Mode
- Possibility to utilize Bluetooth Simulation sources
- Hazard area drawing tool and training
- GPS & maps
ChemProX CRN Kit Includes:
- ChemProX Handheld Chemical Detector
- Transit Case
- Quick Reference Guide
- User Manual
- Li-Ion Battery
- USB Charging Cable
- Confidence Check Tube
- Carrying Pouch
- Rain Cap (3 pcs)
- USB Adapter Cable
- Monitoring Tube Set (3 Tubes)
- Mains Power Adapter with AC plug mix
- Dust Filter (3 pcs)

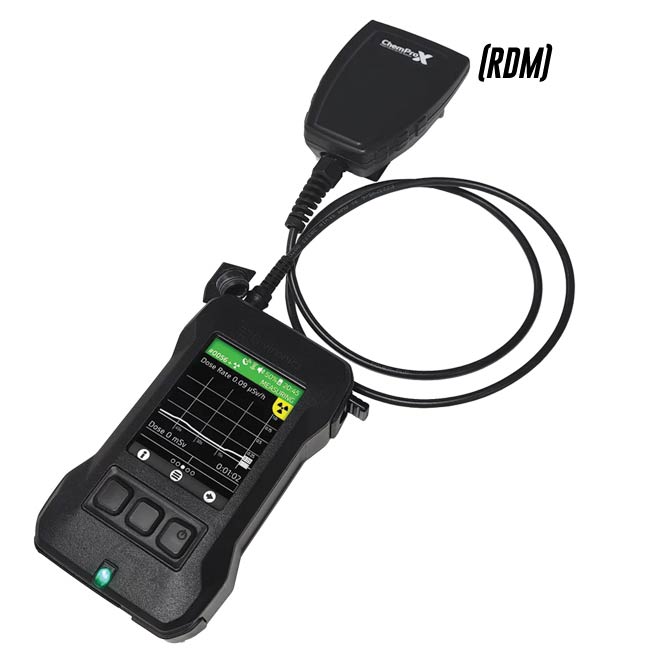

- Radiation Detector Module
- Charging Station w/Power Cable
- Power/Ethernet Adapter w/Power Cable
- Alarm Module
- Alkaline Battery Pack
- Simulation Source Set
ChemProX Handheld Chemical Detector
ChemProX Handheld Chemical Detector
