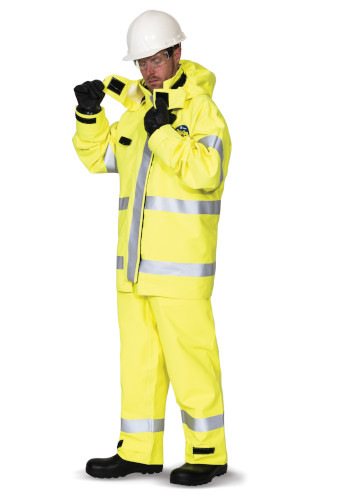

DuraChem 200 Bib Overall & Jacket w/ Attachable Hood, Glove Cone Inserts, & CP Cuff
DuraChem 200 is multi-purpose, high-visibility FR apparel with added protection against Chemical, Biological, Arc Flash, Steam and Hot Water, and Molten Metal Splash hazards. Available as a coverall or multi-piece configuration, it offers breathable, launderable protection for a wide range of applications for daytime or nighttime work. Certified to or compliant with seven key industry safety standards, it helps simplify PPE selection and inventory with a multi-hazard apparel solution. From industrial applications to emergency response, DuraChem 200 is a proven workhorse with the data to back it up.
Features:
- DuraChem 200 is the first and only breathable protective apparel certified to or compliant with seven key industry safety standards.
- Launderable Hi-Vis FR protection, plus Chemical, Thermal, Arc Flash, Steam and Hot Water, and Molten Metal Splash protection.
- Breathability reduces heat stress and improves worker comfort.
- 24/7 facility-wide protection for day or night work applications.
- Multi-Purpose garment with flexible hood options simplifies PPE selection and inventory.
DuraChem 200 Bib Overall & Jacket w/ Attachable Hood, Glove Cone Inserts, & CP Cuff
| Thermal and Burn Testing |
| Test Method |
Result |
Heat Thermal Performance (HTP)
ASTM F2700 |
Spaced: 20.2 cal/cm2
Contact: 14.3 cal/cm2 |
Flame Resistance
ASTM D6413 |
Char length: 1.06 in
Afterflame: 0.0 sec |
Thermal Protective Performance (TPP)
ISO 17492 |
13.9 cal/cm2 |
Shrinkage/Heat Resistance
ASTM F2894 |
8.0 %, 6.0%
WARP, WEFT |
Manikin Body Burn (Pyroman)
ASTM F1930
Exposed Head, min - 6.56% |
6.56%
predicted body burn |
Heat Transfer - Molten Substances
ASTM F955 |
Aluminum @ 1400 F: 19.8sec to 2⁰ burn
34.6⁰C increase
Iron @ 2800 F: no burn
11.7⁰C increase
Sulfur @ 302 F: no burn
9.5⁰C increase |
Electric Arc Rating
ASTM F1959 |
APTV = 13 cal/cm2 |
Steam 302˚F @ 30 psi @ 2.4”
University of Alberta (CAN/CSGB 155.20)
|
6.8 Seconds to 2nd Degree Burn
19.8 Seconds to 3rd Degree Burn
|
Hot Water (185˚F @ 6L/min) @ 2.0”
University of Alberta (CAN/CSGB 155.20)
|
No Burn |
| Splash Chemical Testing* |
| Chemical Penetration ASTM F903, Procedure C |
Holdout Time In Minutes |
| Butyl Acetate |
>60 |
| Dimethyl Formamide |
>60 |
| Fuel H |
>60 |
| Methyl Isobutyl Ketone |
>60 |
| Nitrobenzene |
>60 |
| Sodium Hydroxide (50%) |
>60 |
| Sodium Hypochlorite (10%) |
>60 |
| Sulfuric Acid (93.1%) |
>60 |
| Biohazard Testing - Fabric & Seams |
| Test Method |
Results |
| ASTM F1671 (blood & viral penetration) |
Pass |
| Comfort Testing |
| Test Method |
Result |
Total Heat Loss
ASTM F1868 Procedure C |
492.9 W/m2 |
Evaporative Resistance
ISO 11092 7.4 |
13.955 Pa-m2/W |
Cold Temperature Performance
ASTM D747 |
0.009 in/lb |
Water Vapor Transmission
ASTM E96 |
3158 g/m2-24hr |
DuraChem 200 Bib Overall & Jacket w/ Attachable Hood, Glove Cone Inserts, & CP Cuff
