Emergency Response Kit for Railcars
The Indian Springs ERK is designed to fit a wide range of railcar housings and arrangements. Kit will work on standard chlorine housings, sulfur dioxide, ammonia, etc.
Features:
- PATENTED CLAMPING JAW – GRIPPER TECHNOLOGY: Allows the unit to be attached securely anywhere along the housing.
- One piece adjustable, aluminum yoke assembly
- Yoke assembly opens to a span of 38”
- Yoke assembly does not require port hole openings for attachment
- Yoke assembly can be placed anywhere along housing ring
- No “bridge” yoke needed to contain sampling valve and thermowell
- Five aluminum, Teflon-lined capping hoods and outlet valves
- Custom molded Viton and EPDM Gaskets
- All components fit into one polyethylene tool box
- Yoke assembly works with existing tank car kits in field
Emergency Response Kit for Railcars

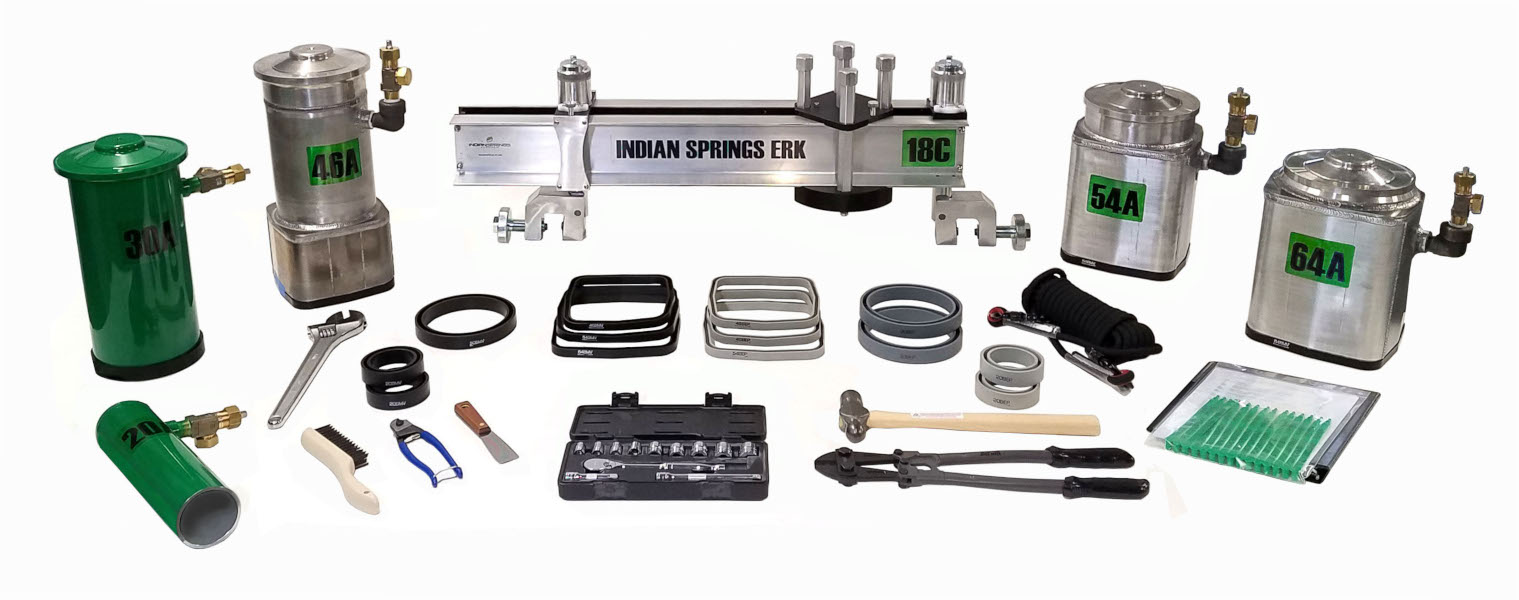

Kit Includes:
- 1pc. Yoke Assembly, Adjusting, with Clamping Jaws (38” Max Housing OD) – part#18C
- 1pc. Hood Assembly with (20V) Vent Valve: 3” ID x 13“ Inside Height – part#20A
- 2pc. Gasket Molded EPDM – part#20BMV
- 2pc. Gasket Molded Viton, – part#20BEP
- 1pc. Hood Assembly with (30V) Vent Valve: 5-1/2” ID x 12“ Inside Height, – part#30A
- 2pc. Gasket Molded EPDM7, – part#30BEP
- 2pc. Gasket Molded Viton, – part#30BMV
- 1pc. Hood Assembly with (46V) Vent Valve: 6-3/4” sq(Inside) x 5-1/2IH + 6-1/2“ ID x 12”IH, – part#46A
- 2pc. Gasket Molded EPDM, – part# 46BEP
- 2pc. Gasket Molded Viton, – part# 46BMV
- 1pc. Hood Assembly with (54V) Vent Valve: 7-1/2“IL x 6-7/8”IW x 9-1/2“IH, – part#54A
- 2pc. Gasket Molded EPDM, – part#54BEP
- 2pc. Gasket Molded Viton, – part#54BMV
- 1pc. Hood Assembly with (64V) Vent Valve: 7-7/8”” sq(Inside) x 10-1/4“IH,- part#64A
- 2pc. Gasket Molded EPDM, – part#64BEP
- 2pc. Gasket Molded Viton, – part#64BMV
- 1pc. Rope and Carabiners (2), – part# X-1
- 1pc. Socket Wrench Set, – part# X-2
- 1pc. Wire Brush, – part# X-3
- 1pc. Wrench, 15” Adjustable, – part# X-4
- 1pc. Hammer, Machinist 1-1/2 lbs, – part# X-5
- 1pc. Paint Scraper, 1-1/4” Blade, – part# X-6
- 1pc. Kit Box Seals, – part# X-7
- 1pc. Bolt Cutter, 18“, – part# X-8
- 1pc. Wire Cutter, – part# X-9
- 1pc. Gasket Sack, – part# X-10
- 1pc. Tool Bucket and Carabiner, – part# X-11
- Kit-Box: 17”H x 19”W x 44”L, – part# 151-X
- 2pc. Instruction Booklet, – part# IX
