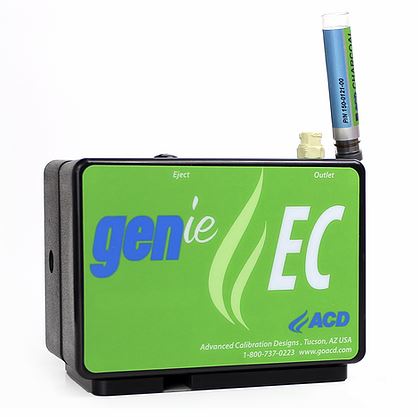

GENie EC Complete System
The GENie EC is the most accurate, diverse, compact and user-friendly instrument from ACD. Certified calibration gas sources provide the equivalent of up to 100 compressed gas cylinders. Interchangeable gases, adjustable concentrations, demand flow capabilities and the ability to provide the lowest, most accurate concentrations in the industry make the GENie EC the smart choice for calibration professionals.
The GENie EC System includes GENie base unit, GENie EC module, 5 foot hose, hard
body carrying case, batteries and manual. A calibration gas source (not included) is required to operate.
Features:
- Interchangeable generating source
- Expandable concentrations and gases
- Integrated microprocessor controlled feedback
- Non-hazardous transport
- Simple to use, NIST traceable
GENie EC Complete System
| Air flow rate (with internal pump |
0.2 to 1 LPM |
| Sample draw rate (with pump disabl |
0.1 to 1.2 LPM |
| Source life |
10, 50 or 100 hours / source |
| Warm-up time (to 90%) |
Approx. 2 minutes |
| L x W x H |
5’W x 3.88’H x 3.13’D |
| Weight |
2 lb. (1360 g) |
| Operating temperature |
0° C to 50° C |
| Relative humidity (intermittent use) |
0 - 100% |
| Accuracy |
±10% |
| Repeatability |
±5% |
| Batter power |
4 Alkaline ‘AA’ |
| Battery life |
8 hours (at .5 LPM flow rate) |
GENie EC Complete System
