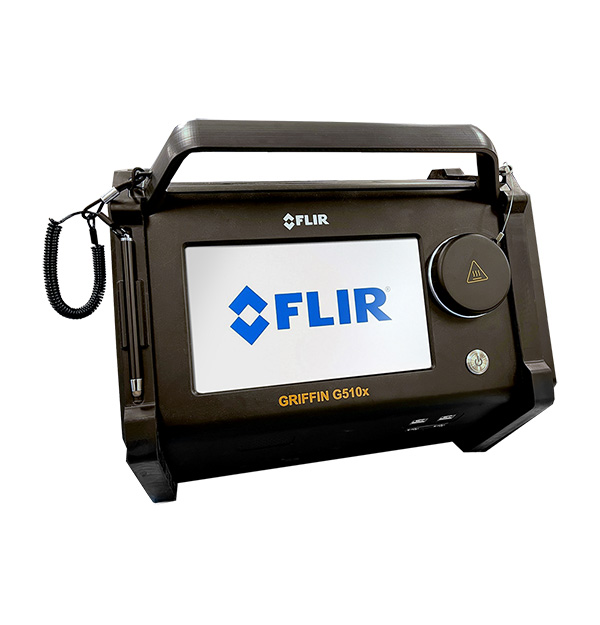

Griffin G510X Person-Portable GC-MS Chemical Identifier
The Griffin G510x Gas Chromatograph Mass Spectrometer (GC/MS) is a versatile, person-portable chemical identifier specifically optimized for the detection of Narcotics and Explosives. Get confirmatory Identification of major and minor chemical constituents in street drugs in under 5 min. It provides near real time confirmation of presumptive techniques used during emergency missions (FTIR, Raman, and HPMS). The integrated Sample injection port allows for environmental, forensic, and hazardous material sampling via the included Sample Prep Kit. The 9” on-board touchscreen displays guided user prompts and can be operated while wearing personal protective equipment (PPE). Long-lasting, on-board batteries ensure every mission is supported from beginning to end.
Mass Spec Performance Redefined
GC Separation with MS is the gold standard for
forensic substance identification. Confidently
identifying unknowns and take action with guided
prompts and simple threat alarms
- Griffin and SWGDRUG on-board libraries provide
confirmatory analysis of illicit trace or bulk
compounds, unknown chemicals, and mixtures
- Visual and audible alarm confirmation with minimal
data interpretation
- On-board Wi-Fi and GPS along with a Wi-Fi hotspot
allow for real time remote monitoring and control
and real time reach back
Identifies Trace Amounts And Complex Mixtures
Versatile in-field sampling options for liquid,
solid, and vapor SPME samples
- High fidelity identification of compounds due to
separation of the complex mixtures
- Sample Prep Kit (SPK), used to manage sample
introduction and minimize instrument overload
- High fidelity, low thermal mass (LTM) GC column
for unsurpassed resolution in challenging
environments
Confident Narcotics Identification In The Field
Completely self-contained and mission-ready
from the field to the lab. Optional vehicle
mount kit for shock and vibration protection
- Extensive training, service, and reach-back
options available
- Data interpretation can be done by the user or
any other user of any GC/MS instrumentation,
in the field or lab.
- Free quarterly library updates for SWGDrug -
Scientific Working Group for the Analysis of
Seized Drugs
Griffin G510X Person-Portable GC-MS Chemical Identifier
| GRIFFIN G510x | |
|---|
| Technology |
Gas Chromatography/Mass Spectrometry (GC/MS) |
| Dimensions (L x W x H) |
16.00 x 13.5 x 13.5 in (40.6 x 34.3 x 34.3cm) - includes batteries, carrier gas, and vacuum system |
| Weight |
36 lbs. (16.3 kg) - includes batteries, carrier gas, and vacuum system |
| Optional Vehicle Mount Kit(L x W x H) |
Road-Ready Version: 16. x 18 x 17 in (with G510x installed)
Off-Road Version: 16.7 x 18 x 17 in (with G510x installed)
|
| Operating Temp / Humidity |
32 to 104 °F (0 to 40 °C); < 95% relative humidity |
| Storage Temp |
-13 to 131 °F (-25 to 55 °C) |
| Power Supply |
100-240V 50-60Hz (220 W max); 19V (DC);
2 x #2590 @ 15V Li Ion batteries (included)
|
| Battery Life |
4 hrs hot swappable |
| Start Up Time |
15 minutes to full operation from cold |
| Calibrant |
On-board FC-43 (Perfluorotributylamine) |
| Carrier Gas |
On-board helium; external helium connector |
| SYSTEM INTERFACE |
| Display |
9” Multitouch Color Display
(1280x720 WVGA;1300 nits brightness)
|
| Alerts |
Audible and visual (touchscreen) |
| Software |
GSS Level 1 Touch; multiple user levels |
| Communication |
2 x USB 2.0, Bluetooth 4.0, WiFi 802.11n, Ethernet via USB, integrated GPS |
| Data Storage |
Internal ≥256GB SSD |
| Training Requirements |
2 hours basic operation; 8 hours Operator Certification |
| SAMPLING & IDENTIFICATION |
| Sample Phase |
Solid, liquid, and vapor |
| Sample Introduction |
- Sample Injection Port (included standard) accepts:
- Direct liquid sampling (organic solution) via Merlin Micro shot
- Sample Prep Kit (SPK)
- *Vapor/Liquid extraction via SPME (Solid Phase Micro Extraction) fiber
- *Auto-Sampler accessory.
|
| Threats |
Detects and identifies trace-level explosives, narcotics like Fentanyl and its analogues, A-series/Novichok CWAs, TICs, environmental pollutants, and other chemicals |
| Standard Reference Database |
SWGDRUG Mass Spectral Library, and GriffinLib Mass Spectral Library included, with instant updates available. *NIST/EPA/NIH Mass Spectral Library - optional |
| MASS SPECTROMETER |
| Mass Analyzer Type |
Linear quadrupole mass filter |
| Mass Range / Resolution |
40-515 m/z; 0.7 amu @ FWHM |
| Ionization Type / Source |
Electron Impact Ionization; non-radioactive ionization source |
| Detector |
Electron Multiplier |
| Vacuum System |
Self-contained miniature turbomolecular & diaphragm pumps |
| Dynamic Range |
7 decades |
| Detection Limit |
PPM (parts per million) via Syringe, and PPB (part per billion) via SPME |
| GAS CHROMATOGRAPH |
| LTM-GC Column |
RTX-TNT (5 m x .18 mm x .2 um) |
| Temperature Range |
Programmable 40 to 300 °C; ramping of 100 °C/min |
Griffin G510X Person-Portable GC-MS Chemical Identifier
Service Contract Options:
| 510x_EXTWAR12 |
1-year extended warranty with reach back support and (1) Preventative Maintenance Service. Loaner Instrument when repair will be over 5 days is included, subject to availability. |
| 510x_EXTWAR24 |
2-year extended warranty with reach back support and (2) Preventative Maintenance Service. Loaner Instrument when repair will be over 5 days is included, subject to availability. |
| 510x_EXTWAR36 |
3-year extended warranty with reach back support and (3) Preventative Maintenance Service. Loaner Instrument when repair will be over 5 days is included, subject to availability. |
| 510x_EXTWAR48 |
4-year extended warranty with reach back support and (4) Preventative Maintenance Service. Loaner Instrument when repair will be over 5 days is included, subject to availability. |
| 510x_EXTWAR60 |
5-year extended warranty with reach back support and (5) Preventative Maintenance Service. Loaner Instrument when repair will be over 5 days is included, subject to availability. |
