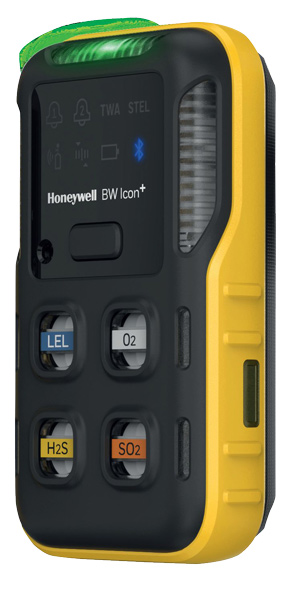

Honeywell BW Icon+
Honeywell BW Icon+ is a serviceable four-gas detector with a choice of six sensors —
Honeywell BW™ Icon+ delivers an icon-based experience in a serviceable package. It enables you to maximize the lifespan of your four-gas detectors, optimize long-term cost of ownership and select from multiple gas sensors for flexible applications.
The Icon is named for its display of simple icons for gas levels and device status. That means no live gas readings for workers to interpret and no time consuming training. Instead, when there’s a gas alarm, the bell icon on the display will illuminate, along with an indicator next to the sensor in alarm, so workers can quickly clear the area
Features & Benefits:
- 2 months of battery runtime on a 4.5-hour charge — and up to 4 months if you turn off the detector at the end of each shift. No daily charging, no unexpected downtime.
- Low-power infrared LEL sensor is immune to silicone poisoning, which means accurate monitoring of combustibles.
- 1 Series sensors respond to dangerous gas levels in seconds, even in harsh temperatures.
- Small, lightweight and wearable
- One-button operation
- IntelliFlash green light indicates the detector is in compliance; amber light indicates the need for maintenance
- Compatible with IntelliDoX instrument management system and Honeywell Safety Suite
- Compatible with TouchConnect, using Bluetooth for wireless configuration
Honeywell BW Icon+
| Technical Specifications |
| Size |
108.2 mm x 61.5 mm x 43.2 mm (4.29 in x 2.44 in x1.7 in) with Alligator Clip
108.2 mm x 61.5 mm x 37.8 mm (4.29 in x 2.44 in x 1.49 in) with Klick Fast Stud |
| Weight |
185 g (6.5 oz) with Alligator Clip, 169 g (6 oz) with Klick Fast Stud |
| Working Temperature |
-40°C to 60°C (-40°F to 140°F) |
| Working Humidity |
5% to 95% |
| Ingress Protection |
IP66, IP68 |
| Alarms and Type |
Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-alarm |
| Self-Test |
Perform diagnostic of sensor, circuitry on activation; Activated detector automatically performs analog sensor diagnostic every 10 minutes, digital sensor diagnostic every second |
| Typical Battery Life |
Two months (with NDIR CH4 sensor) |
| Connected Worker |
Bluetooth Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App, Device Configurator App and Safety Suite Device Configurator Software |
| User options |
- Change High, Low, TWA and STEL alarm set points
- Latching alarms
- Set Calibration and/or bump test reminders
- Assign worker and location assignments
- Always on
- User options only available via Device Configurator and Safety Suite Device Configurator
|
| Certifications and Approvals |
ATEX, IEC Ex, contains FCCID, contains IC |
| Device Warranty |
Three-year warranty for sensors and detector |
| Sensor Specifications |
| Gas Name |
Measuring Range |
Resolution |
Working Temperature |
| CO |
0 to 2000 ppm |
1 ppm |
-40°C to 60°C (-40°F to 140°F) |
| H2S |
0 to 200 ppm |
1 ppm (can set to 0.1 ppm) |
-40°C to 60°C (-40°F to 140°F) |
| SO2 |
0 to 150 ppm |
0.1 ppm |
-20°C to 50°C (-4°F to 122°F) intermittent
-40°C to 55°C (-40°F to 131°F) |
| O2 |
0 to 30% VOL |
0.1% VOL |
-40°C to 60°C (-40°F to 140°F) |
| NDIR-CH4 |
0 to 100% LEL |
1% LEL |
-40°C to 60°C (-40°F to 140°F) |
Honeywell BW Icon+
