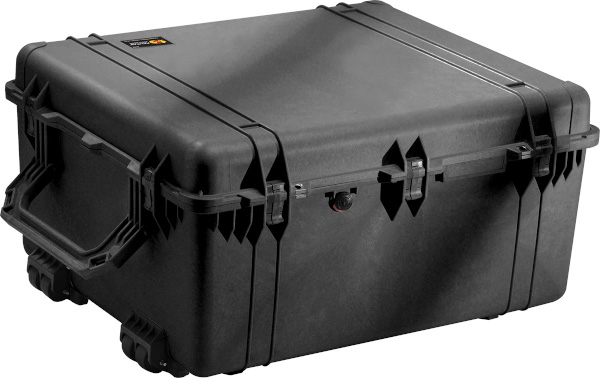

Pelican 1690 Protective Transport Case
Pelican 1690 cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the artic or the heat of battle, Pelican cases have survived.
Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.
Features:
- Personalized nameplate service available
- 4 strong polyurethane wheels with stainless steel bearings
- Large 2-person fold down handles
- Watertight, crushproof, and dustproof

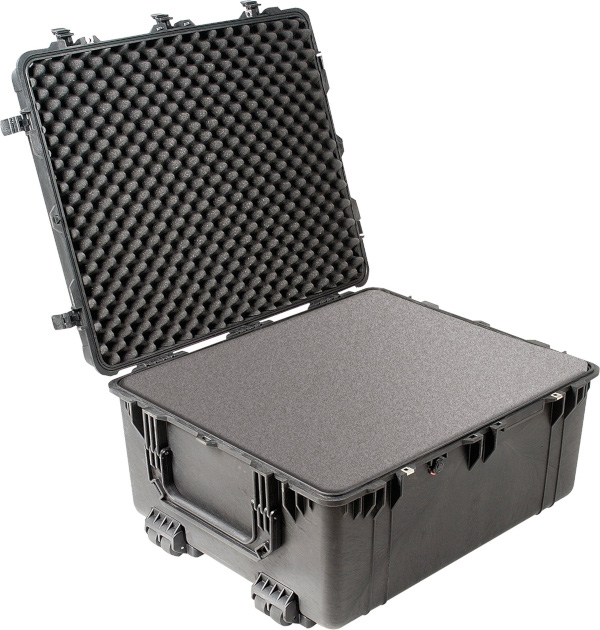

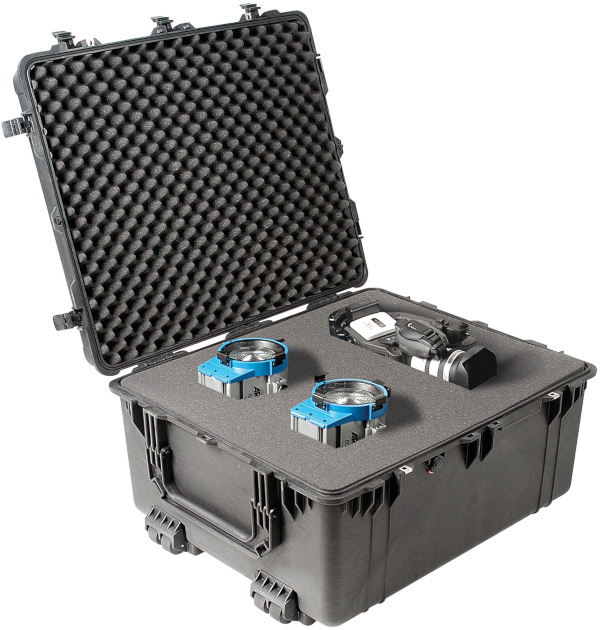

- 3 level Pick N Pluck with convoluted lid foam
- Automatic Pressure Equalization Valve
- Easy open Double Throw latches
- O-ring seal
- Open cell core with solid wall design

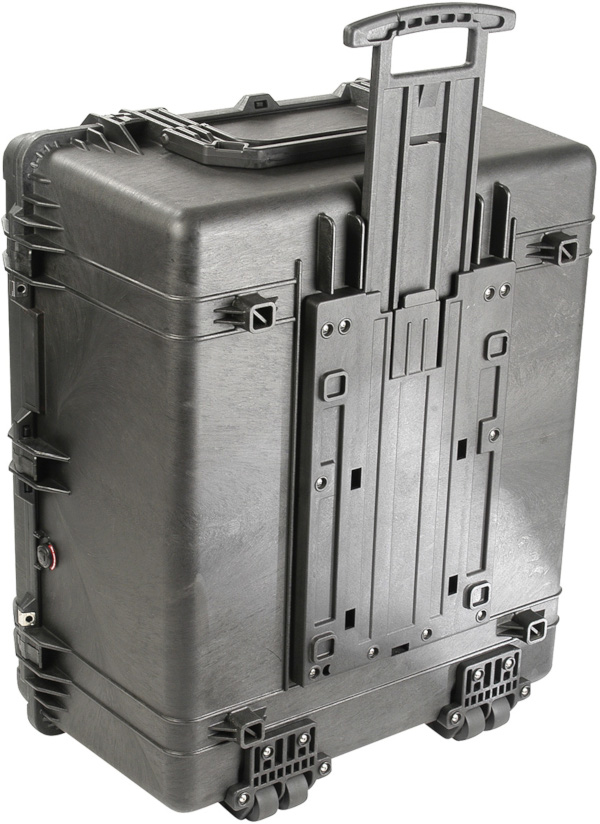

- Retractable extension handle
- Stainless steel padlock protectors
Pelican 1690 Protective Transport Case
| Interior Dimensions: |
30.13" L x 25.13" W x 15.36" D |
| Exterior Dimensions: |
33.43" L x 28.40" W x 17.65" D |
| Lid Depth: |
2.86" |
| Bottom Depth: |
12.14" |
| Total Depth: |
15.00" |
| Int Volume: |
6.73 ft³ |
| Weight with Foam: |
43.00 lbs |
| Weight without Foam: |
34.00 lbs |
| Buoyancy: |
433.00 lbs |
| Foam Layers: |
Layer 1 (Lid): 3.00" - Convolute
Layer 2 (Base): 1.25" - Pad
Layer 3 (Base): 3.65" - Pick N Pluck
Layer 4 (Base): 3.65" - Pick N Pluck
Layer 5 (Base): 3.65" - Pick N Pluck |
| Body: |
Polypropylene |
| Latch: |
ABS |
| O-Ring: |
Polymer |
| Pins: |
Stainless Steel |
| Foam: |
1.3 lbs Polyurethane |
| Purge Body: |
ABS |
| Purge Vent: |
3 Micron Hydrophobic Non-Woven PET |
| Minimum Temperature: |
-40° F |
| Maximum Temperature: |
210° F |
| Wheels: |
4 |
| Extendable Handle: |
Yes |
| Certifications: |
IP67
Def Stan 81-41
STANAG 4280 |
