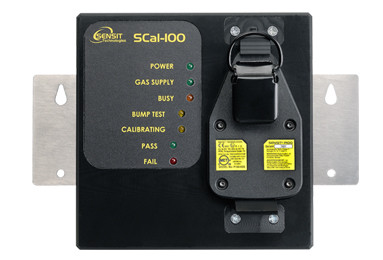

SCAL-100 Calibration Station for Sensit P100
SCAL-100 Calibration Station is the automatic bump and calibration station for SENSIT P100 Personal Gas Monitors equipped with two way communication. SCAL-100 is also used to upload data from the P100 event log.
Two versions are available: The SCAL-100-D desktop version transmits data to a computer via USB, and the SCAL-100-N network version communicates via ethernet cable. Both versions use the SCAL-D 360-D Data Management Software (sold separately).
Features:
- Indicates proper gas pressure
- Automatic operation when instrument is installed
- Indication of pass or fail
- RJ45 intranet connection
- Windows® Operating System: 7, 8, 8.1, 10
Windows® Server: 2008, 2008 R2, 2012, 2012 R2, 2016, 2019
SCAL-100 Calibration Station for Sensit P100
Product Specifications
| Size: |
6” x 6” x 1.75” (15.24cm x 15.24cm x 4.5cm) |
| Weight: |
2 lb. (0.9 kg) |
| Operational Temp: |
40 – 120 F (5 to 50° C) |
| Max. Inlet Pressure: |
20 PSI |
| Power: |
100-240VAC 50/60Hz 0.2A input with 2VDC 0.5A output |
Software Requirements
- 1 GB Hard Drive Space
- Windows 7, 8, 8.1, 10
- Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019
- Microsoft® Outlook or Direct Email
