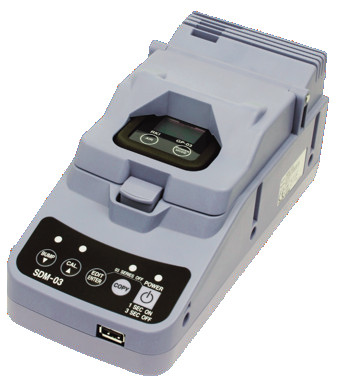

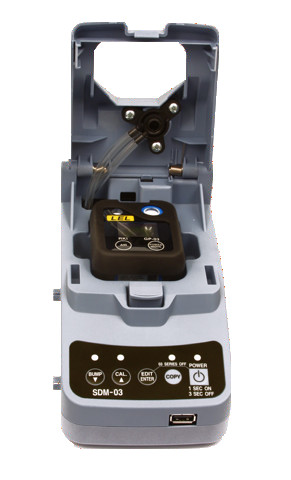

SDM-03 Stand Alone Docking and Calibration Station for 03 Series
The SDM-03 is a versatile maintenance tool that automates the testing service of a 03 Series portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).
Features:
- Stand-alone station (no PC required)
- Calibration
- Bump Test
- Save Bump Test and Calibration records
- Bump test and calibration records copy to USB jump drive
- Includes PC software for viewing/archiving bump test & calibration records
- Can be connected to a PC with USB cable allowing 10 units to be calibrated, bump tested, and data archived simultaneously.
SDM-03 Stand Alone Docking and Calibration Station for 03 Series
| Input Power |
- 12 VDC
- NOTE: AC Adapter with 100 - 240 VAC, 50/60 Hz, 0.6A input and 12 VDC, 1.2A output provided as standard. |
| Environmental Conditions |
- For Indoor Use Only
- -10° C to 40° C, below 80% Relative Humidity,
Non-Condensing |
| Applicable Instruments |
03 Series |
| Maximum Number of Records Saved |
200 (stand-alone). Unlimited with software |
| 3 Ports |
1 Calibration gas, 1 fresh air, and 1 exhaust |
| Standard Accessories |
- AC Adapter
- USB Flash Drive
- Single Module Data Viewer Software
- SDM-03 Docking Station PC Controller Program
- Inlet Air Filter
- Instruction Manual
- 10 Foot Long Exhaust Tube
- One 3 Foot Long Tube for GAS Fitting
- 2 T-Fittings (for PC Controlled Configuration only)
- 10 Foot Long 3/16 Inch Tube for GAS manifolding (used for PC Controlled Configuration only)
- Check Valve (used for PC Controlled Configuration only)
- USB Cable, Type A to Type B |
SDM-03 Stand Alone Docking and Calibration Station for 03 Series
