Hazmat Static Ground & Bond Test System
Emergency Responder Ground & Test Kit for Hazmat Applications.
Be ready for any hazmat spill application, big or small with AEMC® Instruments Emergency Responder Static Ground and Bond Test System Kit.

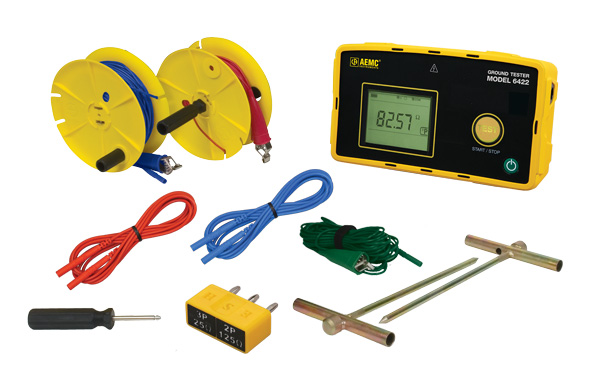

AEMC has upgraded the Hazmat Static Grounding and Test Kit to incorporate a new 3 point ground test meter, Model 6422. The same “Fireman proof” one button test operation in the new meter has been kept, with the added feature of holding the reading on the display at the end of the test. Also, the test button lights up in an amber color during the test and turns green at the completion of a successful test. If an error occurs the test button turns red and the display will flash the error.The kit caters to a wide range of hazmat applications, from chemical and petrochemical industries to manufacturing and transportation sectors.
Other key features include:
- Complies with the grounding and testing recommendations of NFPA 472
- Significantly reduces or eliminates the potential for sparks and explosion due to static electricity
- Contains all the equipment needed to properly ground and test prior to flammable hazardous material transfer
- One button test operation provides quick results minimizing valuable time to transfer potential combustible material
- Portable and easy to transport, which makes it convenient for swift on-site response.

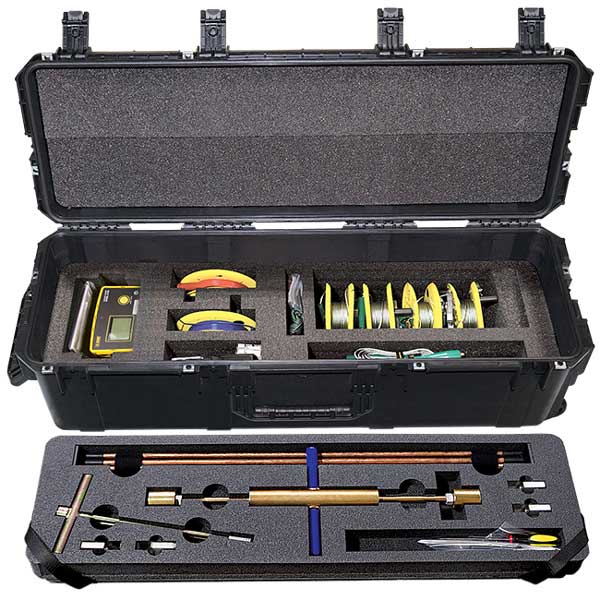

The Static Ground and Bond Test System Kit includes everything needed to establish an equipotential plane of ground for HAZMAT transfer. Each kit includes:
- Meter
- Two 150 ft color-coded leads on spools (red/blue)
- One 30 ft lead (green)
- Two 14.5” T-shaped auxiliary ground electrodes
- One calibration checker
- Batteries and user manual
- One 100 ft tape measure and eight cable ties
- Six threaded copper clad 3 ft ground rods
- Four ground rod couplers
- One 50 ft bonding cable with REB clamps
- Three 50 ft grounding cables (REB clamp on one end, Mueller clip on the other end)
- Six 10 ft ground rod jumper cables with Mueller clip on both ends
- One ground rod driver/ extractor tool
- Waterproof utility carrying case with wheels and handle
Hazmat Static Ground & Bond Test System
Ground Resistance (2P Mode) |
Display: |
Backlit LCD |
Measurement Range: |
0.05-99.99 Ω |
80.0-999.9 Ω |
0.800-9.999k Ω |
8.00-50.00 kΩ |
Resolution: |
0.01 Ω |
0.1 Ω |
1 Ω |
10 Ω |
Ground Resistance (3P Mode) |
Measurement Range: |
0.50-99.99 Ω |
80.00-999.99 Ω |
0.800-2.000k Ω |
—— |
Resolution: |
0.01 Ω |
0.1 Ω |
1 Ω |
—— |
Measurement Frequency: |
128 Hz or 256 Hz (automatically selected) |
No-load Voltage: |
±10 V peak |
Maximum Test Current: |
20 mA |
Measurement Mode: |
One shot or continuous |
General |
Power Supply: |
(6) AA Alkaline batteries |
Battery Life: |
> 2,000 x 3P earth measurements at 100 Ω |
Dimensions: |
8.78 x 4.96 x 2.75” (223 x 126 x 70mm) |
Safety |
Safety Ratings: |
EMC: IEC 61326-1; IEC 61010-2-030 / 600 V CAT IV |
