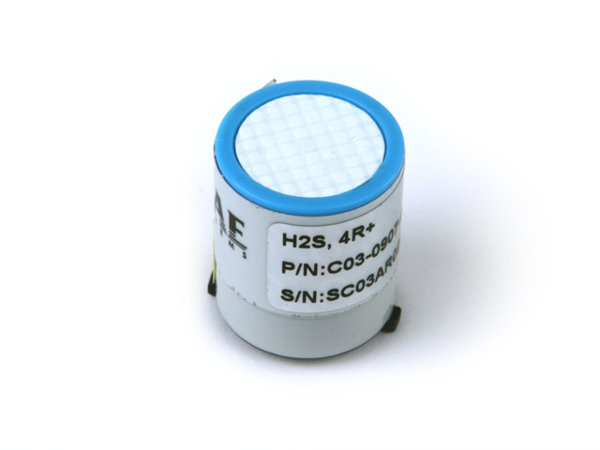

Hydrogen Sulfide (H2S) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Hydrogen Sulfide (H2S) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

The C03-0907-001 replacement Hydrogen Sulfide sensor from RAE Systems measures from 0 to 100 ppm H2S,has a one year warranty, and is compatible with the MultiRAE family and the ToxiRAE Pro.

• Sensor Type: Electrochemical
• Range: 0 to 100 ppm
• Max Overload: 500 ppm
• Resolution: 0.1 ppm
• Bias/Equilibration: No bias/10 min. after installation
• Temperature Range: -4? F to 122? F (-20? C to 50? C)
• Pressure Range: Atmospheric ?10%
• Operating Humidity: 15 to 90% RH non-condensing
• Drift: < 2% signal/month
• Storage Life: 6 months in sealed container
• Storage Temperature: 32? F to 68? F (0? C to 20? C)
• Operating Life: 2 years in air
• Warranty: 2 years from date of shipment
• Calibration Gas: 10 ppm H2S, balance N2
• Supported Instruments: MultiRAE Lite, MultiRAE, MultiRAE Pro, and ToxiRAE Pro
