Chlorine Dioxide (ClO2) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Chlorine Dioxide (ClO2) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

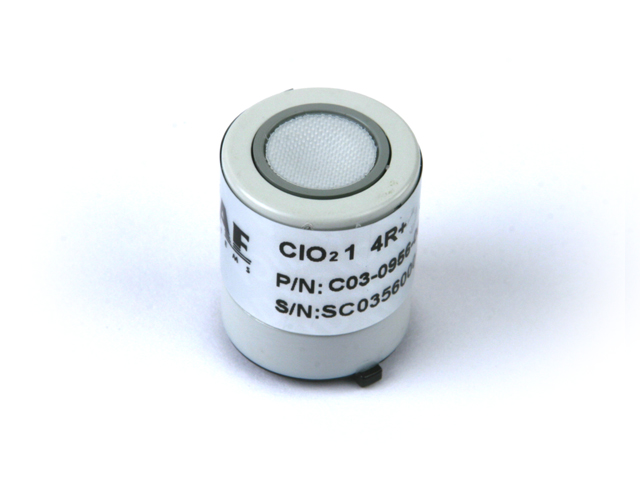

The C03-0956-000 Chlorine Dioxide sensor is a RAE Systems replacement sensor for any of the MultiRAE family of gas detection meters and the ToxiRAE Pro. It has a range of 0 to 1 ppm and a warranty of 1 year.

• Sensor Type: Electrochemical
• Range: 0 to 1 ppm
• Resolution: 0.01 ppm
• Bias/Equilibration: No bias/10 min. after installation
• Temperature Range: -4? F to 104? F (-20? C to 40? C)
• Pressure Range: Atmospheric ?10%
• Operating Humidity: 5 to 95% RH non-condensing; no effect
• Drift: < 5% signal/6 months
• Temperature Effect: < 0.02 ppm increase from -4? F to 104? F (-20? C to 40? C)
• Storage Life: 6 months in sealed container
• Storage Temperature: 32? F to 68? F (0? C to 20? C)
• Operating Life: 2 years in air
• Warranty: 1 year from date of shipment
• Calibration Gas: 0.8 ppm ClO2 from gas generator or equivalent of 2 ppm CL2. Requires CLO2 gas generator, CL2 surrogate gas, or quarterly factory calibration
• Supported Instruments: MultiRAE Lite, MultiRAE, MultiRAE Pro, and ToxiRAE Pro
