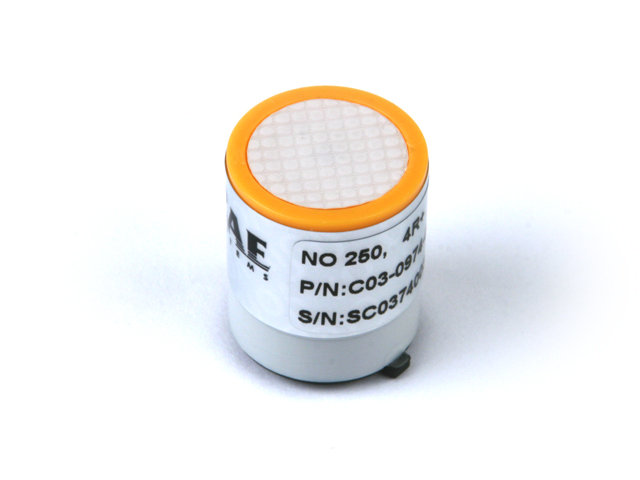

Nitric Oxide (NO) sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Nitric Oxide (NO) sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Nitric Oxide (NO) sensor is a replacement sensor for any of the MultiRAE family of gas detection meters.

• Sensor Type: Electrochemical
• Range: 0 to 250 ppm
• Max Overload: 1,000 ppm
• Resolution: 0.5 ppm
• Bias/Equilibration: Bias on; 6 hours after installation
• Temperature Range: -4? F to 122? F (-20? C to 50? C)
• Pressure Range: Atmospheric ?10%
• Operating Humidity: 15 to 90% RH non-condensing
• Drift: < 2% signal/month
• Storage Life: 6 months in sealed container
• Storage Temperature: 32? F to 68? F (0? C to 20? C)
• Operating Life: 2 years in air
• Warranty: 1 year from date of shipment
• Calibration Gas: 25 ppm NO, balance N2
• Supported Instruments: MultiRAE Lite, MultiRAE, MultiRAE Pro, and ToxiRAE Pro
