Ultra-Gutter Guard RT Stormwater Management for Curb Inlets

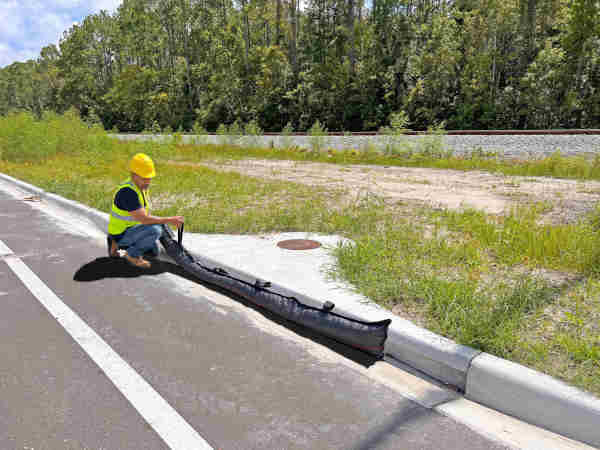

The Ultra-Gutter Guard RT is a cost-effective stormwater management solution designed to provide exceptional erosion and sediment control at the curb. With its recycled rubber filter media, the Ultra-Gutter Guard RT is both reliable and environmentally friendly. It features a high-flow overflow weir that prevents ponding and flooding during extreme wet weather events, while its high-flow outer filter efficiently removes contaminants from the stormwater flow. The UV-resistant, woven monofilament polypropylene filter fabric ensures a longer service life when compared to other inlet guards. The Ultra-Gutter Guard RT is easy to install and reuse, and the product’s weight keeps it securely attached to the curb surface without the need for weights, anchors, or straps.
Key Features
- Designed with high-flow overflow weir - prevents ponding/flooding during extreme wet weather events.
- High-flow outer filter quickly and effectively removes contaminants from water flow.
- UV-resistant, woven monofilament polypropylene filter fabric provides extended service life.
- Weight of unit holds it securely to curb surface - easy to install, use and reuse.
- Environmentally-friendly - filter media composed of 100% recycled, shredded rubber tires.
- Heavy-duty, pre-installed lift loops make lifting, installing and moving quick and easy
Ultra-Gutter Guard RT Stormwater Management for Curb Inlets
Description: Geotextile Bags and Tubes manufactured from high UV, woven monofilament polypropylene filter fabric. Made from 100% US fabric and sewing thread. Significantly heavier and stronger than most common imported gravel bags. Constructed with lift loops that help reduce worker fatigue. The addition of lift loops make lifting and installing gravel bags and tubes much easier.
| Attribute |
Test Method |
Test Results |
| Grab Tensile |
ASTM D4632 |
350/250 lb |
| Mullen Burst |
ASTM D3786 |
175 psi |
| Flow Rate |
ASTM D4491 |
100 gal/min/ft2 |
| UV Resistance @500 hrs |
ASTM D4355 |
80% |
| Apparent Opening Size (AOS) |
ASTM D4751 |
40 U.S. Sieve |
Ultra-Gutter Guard RT Stormwater Management for Curb Inlets
| Item #: |
Description: |
Dimensions In (mm): |
Dimensions ft (m): |
Weight lbs (kg): |
Compliance: |
| #9144 |
Gutter Guard RT, 6-foot |
72 x 8 x 8 (1828.8 x 203.2 x 203.2) |
6 x 0.67 x 0.67 (1.8 x 0.20 x 0.20) |
50 (22.68) |
Stormwater Management Regulation 40 CFR 122.26, National Pollutant Discharge Elimination System (NPDES), Total Maximum Daily Load (TMDL) |
| #9145 |
Gutter Guard RT, 9-foot |
108 x 8 x 8 (2743.2 x 203.2 x 203.2) |
9 x 0.67 x 0.67 (2.7 x 0.20 x 0.20) |
70 (31.75) |
Stormwater Management Regulation 40 CFR 122.26, National Pollutant Discharge Elimination System (NPDES), Total Maximum Daily Load (TMDL) |
Ultra-Gutter Guard RT Stormwater Management for Curb Inlets
