X-am 3500 4-Gas Detector

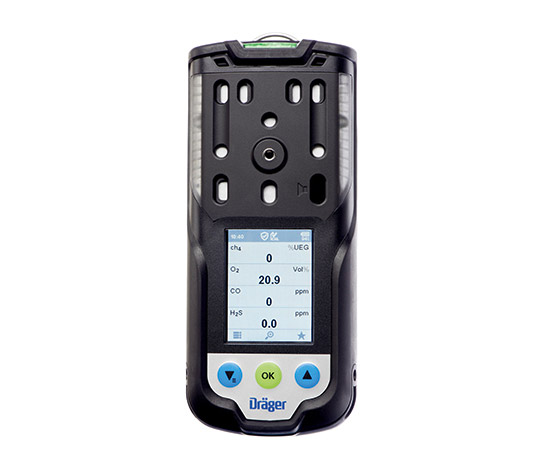

The Dräger X-am 3500 is a 4-gas detector that can measure the standard confined space gases like O2, LEL, CO, and H2S, as well as toxic gases like SO2 and NO2. The meter can be operated as either a diffusion instrument or pumped when the pump adapter is attached to the front of the instrument.
Features:
- Four gas meter with toxic sensor options
- Three-button, one-hand operation
- Rechargeable Li-Ion battery with induction charging

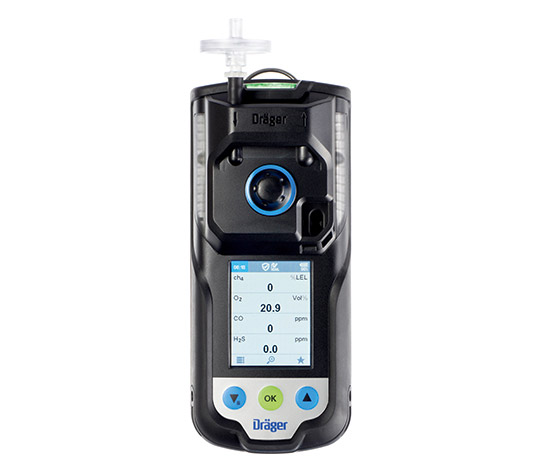

- Internal pump that is activated when the pump adapter is engaged
- Pump draws sample from up to 45 m (147 ft.)
Includes:
- X-am 3500 with battery
- Grip clip
- Internal pump
- Pump adaptor
- Inductive charger and power supply
Additional configurations available. Contact us for details.
X-am 3500 4-Gas Detector
- Dimensions (H x W x D): 179 x 77 x 42 mm
- Approx Weight: 495 g (550 g with pump), depending on sensor configuration, without strap
- Housing: Durable two-component housing
- Display: High-contrast colour display
- Temperature: -20° C to 50° C
- Pressure: 700 to 1,300 hPa
- Relative humidity: 10 to 90% (short-term up to 95%) r.h.
- Alarms:
- Visual: 3 LED 'red' (gas alarms), 3 LED 'yellow' (device alarms)
- Acoustic Multi-tone, typically 100 dB(A) at 30 cm
- Vibration
- Ingress protection: IP 67
- Energy supply: Lithium-ion battery, rechargeable, inductive charging
- Operating times (Diffusion):
- With CatEx and 3 EC sensors Typically 24 hours
- With IR and 3 EC sensors Typically 22 hours
- With 3 EC sensors Typically 120 hours
- With CatEx, PID and 3 EC sensors Typically 17 hours
- With IR, PID and 3 EC sensors Typically 16 hours
- With CatEx-, IR- and 3 EC sensors Typically 14 hours
- PID only Typically 42 hours
- Charging times: Typically 4 hours after use during a shift of max. 10 hours
- Start-up times: Typically <60 seconds for standard sensors
- Data storage: 12 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by
the second on all 7 channels: approx. 210 hours
- Pump operation: Max. hose length 45 m (147 ft.)
- Approvals:
- I M1, II 1G
- Ex da ia I Ma, Ex da ia IIC T4 Ga
- ATEX / IECEx
- Metrological approval pending
- EAC PO Ex da ia I Ma X
- Ex da ia IIC T4 Ga X
- Class I, Zone 0, AEx da ia IIC T4 Ga
- Class II, Div 1, Gr. E, F, G T4
- cCSAus (Please contact Dräger regarding availability.)
- C22.2 No. 152, ANSI-ISA 12.13.01:2000
- CE labelling
- Manufacturer´s warranty:
- 3 years for the device
- 1 year for the power supply
- Sensor warranty varies from 1 to 5 years
