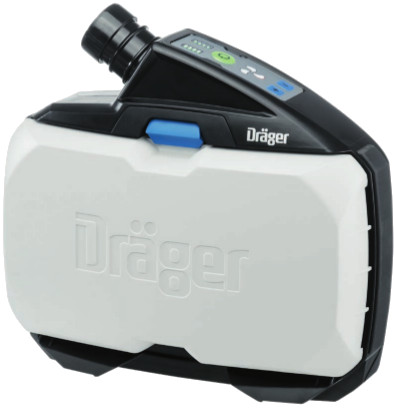

X-plore 8500 Powered Air Purifying Respirator (PAPR) Application Set

There are no reviews yet. | Write a review
Item #: R5954
MFG: Draeger
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$1,428.00-$2,009.50
Kit Option:
Hose Option:
Filter Option:
Headpiece Option:
Update price
View additional buying options
Product Details

X-plore 8500 Powered Air Purifying Respirator (PAPR) Application Set

Workplace environments that compromise the quality of air you breathe demand reliable solutions. The Draeger X-plore 8000 powered air-purifying respirator (PAPR) offers a new level of intuitive handling combined with intelligent electronics. The result? A high degree of safety that you and your people need to focus on the task at hand.

Benefits:

  • Robust: Designed for daily use in tough environments
    • Let's face it: for your workplace, only the most rugged PAPR design will do. The Draeger X-plore 8500 features heavy-duty design with rubber protectors and high ingress protection (IP 65) against dust and water from any direction. A choice of two battery versions incorporating the latest Li-ion battery technology provide power for at least 4 to 8 hours, respectively. Protected air intake openings ensure that sparks or water coming from the front will not be sucked into the filter
  • Comfortable: Lets you focus on the task
    • The Draeger X-plore 8500 lets you do your job and forget about the PAPR you need for proper personal protection. The advanced carrying system ensures optimal weight distribution of the unit. The system provides a tight and stable connection between the belt and the unit through a special adaptor plate; a comfort pad is also available as an option. The hose connector features a 360° click adaptor. To avoid eye irritation, the system's new headpieces are designed for optimal airflow and maximum comfort.
  • Safe: Self-explanatory operation minimizes user error
    • The PAPR unit recognizes the connected headgear and automatically selects the correct minimum flow which avoids leakages due to insufficient flow rates. An optical sensor prevents use without the filter and supports the right display of the saturation of the particle filter at any time. The filter system features plug-and-go exchange.In addition to the optical and acoustical alarm, the unit is also equipped with a vibration alarm. The entire system features uniform color codes on all exchangeable elements and an error-proof hose connector.
  • Easy to maintain: Efficient cleaning together with secure operation
    • The Draeger X-plore 8000 PAPR was designed to be practically maintenance free, leading to low cost of ownership. The self-check and self-adjustment systems feature advanced temperature and pressure sensor technology to ensure the right flow rate for any environment. The simple and efficient charging system allows rapid charging (less than 3 hours for an empty battery). The unit is designed for fast and easy disassembly for cleaning.
  • Modular: A wide range of components for every application
    • The Draeger X-plore 8000 offers a number of user-friendly carrying systems for standard and decontamination applications. To complete the system, Dräger developed a wide range of tight- and loose-fitting headgear, such as half and full-face masks, short and long hoods, and helmets with visor and protective visor. Standard and enhanced flexibility hoses are available and compatibility is ensured. You can combine various and accessories to best fit your application, and system upgrades are possible at any time.

X-plore 8500 Powered Air Purifying Respirator (PAPR) Application Set

Approvals: NIOSH (42 CFR, Part 84)
Ingress protection: IP65 (dust-tight and resistant to water jets from all sides)
Airflow: Automatic setting of operating type: loose- or tight-fitting
headpiece;

Adjustable in three levels:

Half and full-face mask: 30, 34 or 83 gal./min
(115, 130 or 145 l/min)

Hoods, Helmets and Visors: 30, 34 or 83 gal./min
(115, 130 or 145 l/min)
Battery technology: Lithium-ions: 12.6 V/3.4 Ah (standard battery)

12.6 V/6.8 Ah (high-capacity battery)
Operating time:
(Depending on the adjusted flow and the concentration of contaminants)
Standard battery life: 4 hours (at 55 gal./min (210 l/min) and
particulate filter)
High-capacity battery: 8 hours (at 55 gals/min (210 l/min) and
particulate filter)
Charging time: Under 3 hours (in 2 hours 80% can be reached)
Weight: Approx. 3 lbs. (1,400 g) (Draeger X-plore 8500 incl. standard
battery and splash guard lid)
Alarm system: Optical alarm (operating display)

Acoustical alarm (≥ 80 dB(A) at 3.3 ft. (1 m)

Vibration alarm
Belt length: Adjustable between 27.56 in. (700 mm) and 55.12 in. (1,400 mm)
(standard and decontamination version)
Belt extension: 13.8 in. (35 cm) (standard and decontamination version)

X-plore 8500 Powered Air Purifying Respirator (PAPR) Application Set

Includes:

  • Blower Unit
  • Battery (as selected)
  • Standard Charger
  • Standard Belt
  • Comfort Pad (only with premium)

X-plore 8500 Powered Air Purifying Respirator (PAPR) Application Set
