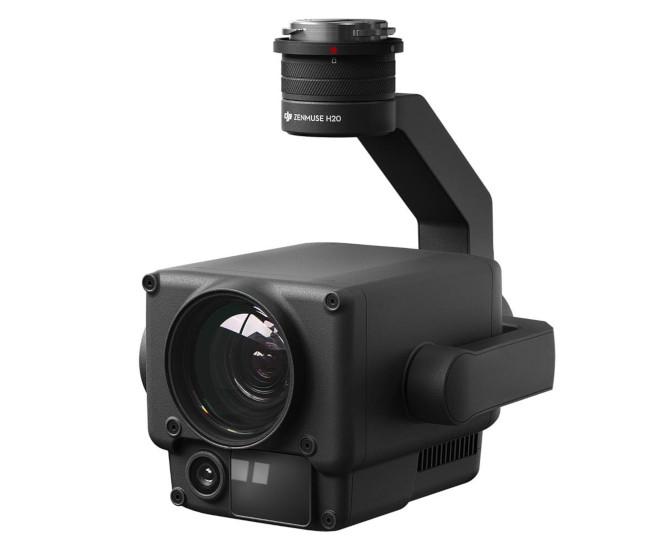

Zenmuse H20 – Triple-Sensor Camera for DJI Matrice 300
The multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.
Features:
- 12 MP Wide Camera 82.9° DFOV
- 20 MP Zoom Camera 23× Hybrid Optical Zoom
- Laser RangeFinder 1200 m Max Range
- IP44 Rating
- -4°F to 122°F Operating Temperature
- Active Image Stabilization and EIS
- Night Scene Mode
Zenmuse H20 – Triple-Sensor Camera for DJI Matrice 300
| General |
| |
Zenmuse H20 |
Zenmuse H20T |
| Dimensions: |
6 x 5 x 6 Inches |
6.6 x 5.3 x 6.3 Inches |
| Weight: |
1.5 lbs |
1.9 lbs |
| Protection Rating |
IP44 |
| Supported Aircraft: |
Matrice 300 RTK |
| Gimbal |
| |
Zenmuse H20 |
Zenmuse H20T |
| Angular Vibration Rnage: |
0.01° |
| Mount: |
Detachable |
| Thermal Camera |
| |
Zenmuse H20T |
| Thermal Imager: |
Uncooled VOx Microbolometer |
| Lens: |
DFOV: |
40.6° |
| Focal Length: |
13.5 mm (equivalent: 58 mm) |
| Aperture: |
f/1.0 |
| Focus: |
5 m to ∞ |
| Laser Rangefinder |
| |
Zenmuse H20 |
Zenmuse H20T |
| Wavelength: |
905 nm |
| Measuring Range: |
3-1200 m (20% reflectivity, full spot) |
| Measuring Accuracy: |
(0.2 m = D x 0.15%) D is the distance to a vertical surface |
| Zoom Camera |
| |
Zenmuse H20 |
Zenmuse H20T |
| Sensor: |
1/1.7" CMOS, Effective Pixels: 20M |
| Lens: |
Focal Length: |
6.83-119.94 mm (equivalent: 31.7-556.2mm) |
| Aperture: |
f/2.8-f/11 (normal), f/1.6-f/11 (night) |
| Focus: |
1 m to ∞ (wide), 8 m to ∞ (telephoto) |
| Wide Camera |
| |
Zenmuse H20 |
Zenmuse H20T |
| Sensor: |
1/2.3" CMOS, Effective Pixels: 12M |
| Lens: |
DFOV: |
82.9° |
| Focal Length: |
4.5 mm (equivalent: 24mm) |
| Aperture: |
f/2.8 |
| Storage |
| |
Zenmuse H20 |
Zenmuse H20T |
| Supported SD Cards: |
Supports a microSD card with capactiy of up to 128 GB
A UHS-I Speed Grade 3 rating microSD card is required
|
| Supported File System: |
FAT32 (<32 GB), exFAT(>32 GB) |
| Environment |
| |
Zenmuse H20 |
Zenmuse H20T |
| Operating Temperature: |
-4°F to 122°F |
| Storage Temperature: |
-4°F to 140°F |
Zenmuse H20 – Triple-Sensor Camera for DJI Matrice 300
