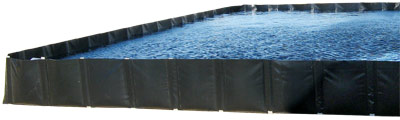

Patriot (Alum. Angle Bracket) Berm
Aluminum Angle Berms are great for storing fuel or chemical tankers, transformers, chemical tanks, waste drums, de-con, or equipment wash down.

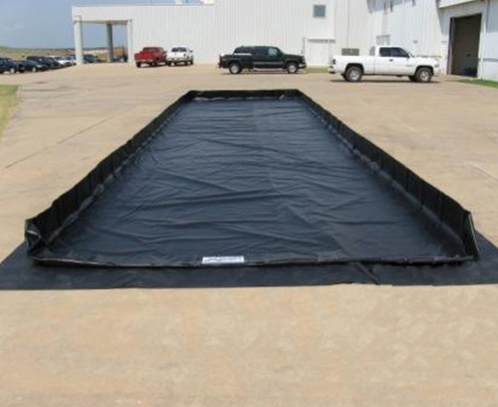

Husky Aluminum Angle Berms are easy to use with minimal set up time. The benefit to our angle berms is by having separate aluminum angle pieces the berm liner itself is lighter to handle. This means less manpower to handle the same size berm in a one piece construction. The angle brackets come in their own storage bag as well as the berm liner making transport much easier for a smaller crew. Two people can set up a 12' x 50' berm in less than 10 minutes. End wall tear down for ingress is one person less than one minute.
Features:
- 6061-T6 Aluminum Angle Brackets Bent to 90 Degrees. Heavy Duty!
- Outside Perimeter Pockets Approx. 2' Apart or Less That Accept The Angle Brackets
- Easy Set Up, Quick Assembly (12' x 50' w/ 2 people less than 10 minutes)
- Remove Brackets From The End Walls For Ingress and Egress In Less Than 1 Minute
- Separate Storage Bags For the Berm and Angle Brackets
- Patriot Berms Are Lighter To Handle Than One Piece Berms
- Material: XR-5-8130 Standard (Unless otherwise specified)
- Optional Tread Pads
- Field Repair Kits
- In House Repairs
- 10 Year Manufacturer's Warranty
Made In America!
Patriot (Alum. Angle Bracket) Berm
Size: |
Folded Dimensions: |
Berm Weight: |
Shipping Dims: |
Shipping Weights: |
10' x 10' x 1' |
22" x 28" x 6" |
37 lbs. |
25" x 9" x 35" |
81 lbs. (UPS) |
12' x 12' x 1' |
24" x 30" x 8" |
50 lbs. |
40" x 48" x 11" |
131 lbs. |
12' x 26' x 1' |
30" x 34" x 9" |
95 lbs. |
40" x 48" x 15" |
201 lbs. |
12' x 36' x 1' |
34" x 36" x 12" |
124 lbs. |
40" x 48" x 18" |
248 lbs. |
12' x 50' x 1' |
40" x 40" x 18" |
173 lbs. |
40" x 48" x 22" |
321 lbs. |
14' x 54' x 1' |
40" x 46" x 24" |
210 lbs. |
40" x 48" x 30" |
369 lbs. |
15' x 50' x 1' |
40" x 46" x 24" |
210 lbs. |
40" x 48" x 30" |
369 lbs. |
15' x 66' x 1' |
40" x 47" x 36" |
268 lbs. |
40" x 48" x 42" |
452 lbs.
|
