X-dock 5300 Bump Test & Calibration Station

There are no reviews yet. | Write a review
Item #: 832188
MFG: Draeger
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$4,350.00
Option:
Update price
View additional buying options
Product Details

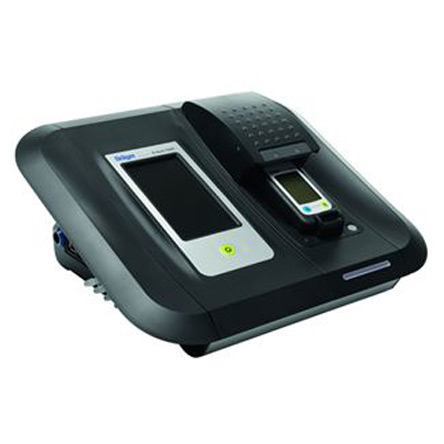

X-dock 5300 Bump Test & Calibration Station

Draeger X-dock 5300 is a single cradle calibration station system. It consists of one master that allows up to 3 gases, power supply, and one instrument module for the X-am multi-gas or PAC single gas instruments. The 5300 is limited to one module and cannot be expanded.

The 5300 is limited to one module and cannot be expanded. One pressure regulator is needed for each gas cylinder attached to the X-dock. Regulator and connection tubing available separately. Automatic bump tests and calibrations with reduced test gas consumption and short testing times save both time and money.

The X-Dock 5300 works independently and can be configured and used without a PC. The station is operated via an integrated touchscreen. A gas detection instrument is detected as soon as it is inserted, and all data is documented in the database.

Features:

  • Touchscreen operation at the master station
  • Station works independently and can be configured and used without a PC
  • Up to three configurable test routines
  • Automatic leak tests
  • Automatic tests of alarm elements (acoustic, visual and vibrational alarms)
  • Optional charging function for X-am 1/2/5/8
  • Replaceable seal cartridge
  • 12V operation (e.g., in vehicles) possible
  • Automatic bump test also saves time, because the test only takes 8 to 15 seconds (for standard sensors like CH4, O2, Co, H2S)
  • Evaluation of sensor response time
  • X-dock 6300/6600 System master unit can be used with 1 to 10 instrument modules

X-dock 5300 Bump Test & Calibration Station

X-dock Master Dimensions: Approx. 120 x 130 x 250 mm
X-dock Module Dimensions: Approx. 90 x 145 x 250 mm
Protection class IP20: Yes
Approvals: CE marking
Ambient conditions: 0°C to 40°C
Gas Connections:
Draeger X-dock 5300: 3 test gas inlets for connecting 3 different test gases + one
fresh air inlet + one waste gas outlet
Connections: Maximum hose length: 45 m (150 ft.)
USB 2.0: 3 USB 2.0 devices / 1 USB host
Network Connection: Yes

X-dock 5300 Bump Test & Calibration Station

There are no reviews yet.


Purchasing Options
Item # Description Price Qty
8324250 Pressure Regulator for X-Dock Calibration Station $884.00
8321918 Cylinder Holder for X-Dock (Table Version) $147.00
8321928 Cylinder Holder for X-Dock (for DIN rail / wall bracket) $189.00

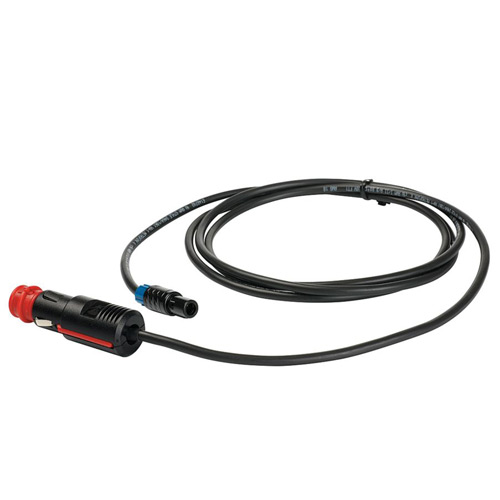

8321855 Car Charging Adapter for X-Dock Calibration Station $106.00
