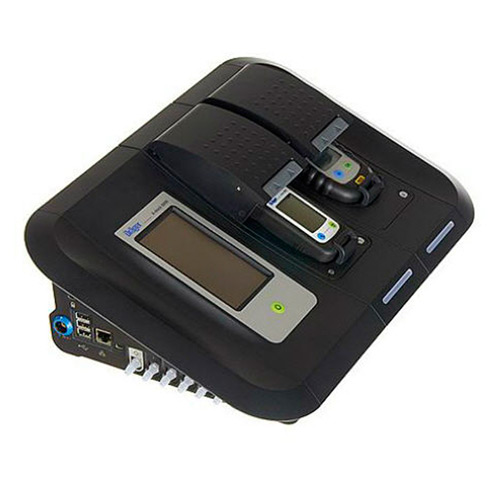

X-dock 6300/6600 Bump Test & Calibration Station

There are no reviews yet. | Write a review
Item #: 832190
MFG: Draeger
Min Order: 0
Order Qty: Must order in multiples of 1
$3,525.00-$4,512.00
Option:
Power Supply:
Update price
View additional buying options
Product Details

X-dock 6300/6600 Bump Test & Calibration Station

The Draeger X-Dock is a powerful bump test and calibration station for Draeger gas detection instruments. At least one instrument module must be purchased with the master unit. The 6300 and 6600 are both compatible up to 10 instrument modules. The 6300 may be used for up to 3 gas cylinders, while the 6600 may be used with up to 6 cylinders.

The X-Dock, along with the required pressure regulator, allows automatic bump tests and calibrations for X-am or PAC instruments with reduced test gas consumption and short testing times, saving both time and money.

When a gas dectector is inserted, the X-Dock immediately detects all sensor combinations and automatically tests and adjusts when all required test gases are connected. The integrated touchscreen makes using and programming the X-Dock simple. All data is documented in a database and is easily transferred from the calibration station, even without a PC.

Features:

  • Touchscreen operation at the master station
  • Station works independently and can be configured and used without a PC
  • Up to three configurable test routines
  • Automatic leak tests
  • Automatic tests of alarm elements (acoustic, visual and vibrational alarms)
  • Optional charging function for X-am 1/2/5x00
  • Replaceable seal cartridge
  • 12V operation (e.g. in vehicles) possible
  • Can be subsequently expanded with up to 10 modules (X-dock 6300/6600)
  • Automatic bump test also saves time, because the test only takes 8 to 15 seconds (for standard sensors like CH4, O2, Co, H2S)
  • Evaluation of sensor response time

X-dock 6300/6600 Bump Test & Calibration Station

X-dock Master Dimensions: Approx. 120 x 130 x 250 mm
X-dock Module Dimensions;: Approx. 90 x 145 x 250 mm
Protection class IP20: Yes
Approvals: CE marking
Ambient conditions: 0°C to 40°C
GAS CONNECTIONS:
Draeger X-dock 6300: 3 test gas inlets for connecting 3 different test gases + one
fresh air inlet + one waste gas outlet
Draeger X-dock 6600: 6 test gas inlets for connecting 6 different test gases + one
fresh air inlet + one waste gas outlet
Connections: Maximum hose length: 45 m (150 ft.)
USB 2.0: 3 USB 2.0 devices / 1 USB host
Network Connection: Yes

X-dock 6300/6600 Bump Test & Calibration Station

Every 6300/6600 X-Dock System Requires:

  • X-dock Master
  • 1 to 10 X-dock cradles
  • Power supply
  • Regulator
  • Tubing

Optional Accessories:

  • Cylinder holder
  • XDM License

X-dock 6300/6600 Bump Test & Calibration Station

There are no reviews yet.


Purchasing Options
Item # Description Price Qty
8321892 PAC Series X-dock Module for Single Gas Monitors $1,860.00
8321890 X-am 1/2/5 Series X-dock Module for Multi-Gas Monitors, Non-Charging Version $1,860.00
8321891 X-am 1/2/5 Series X-dock Module for Multi-Gas Monitors, Charging Version $2,016.00
8324250 Pressure Regulator for X-Dock Calibration Station $884.00
8321918 Cylinder Holder for X-Dock (Table Version) $147.00
8321928 Cylinder Holder for X-Dock (for DIN rail / wall bracket) $189.00
