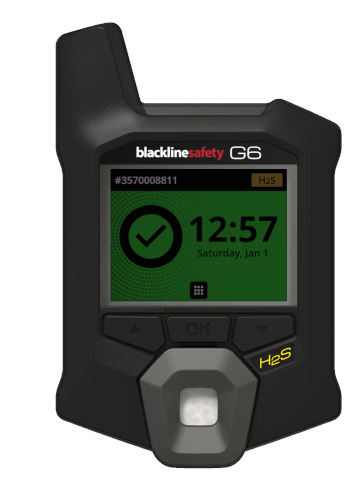

G6 Cloud-Connected Single Gas Detector
The G6 from Blackline Safety is a cloud-connected single-gas detector designed to help you quickly and
confidently respond to safety incidents. The detector is available with either a CO, H2S, O2, or SO2 sensor installed. Paired with Blackline Safety's unrivaled cloud connectivity and analytics, the G6 is an innovative, must-have solution for improving safety and operational performance in the modern industrial workplace.
The superior performance and vital data of G6
gives you a significant advantage in your fight
to reduce your organization’s incidents to zero.
You can take informed action and get ahead of
possible safety risks with visuals of high alarm
rates and low compliance.
G6 features:

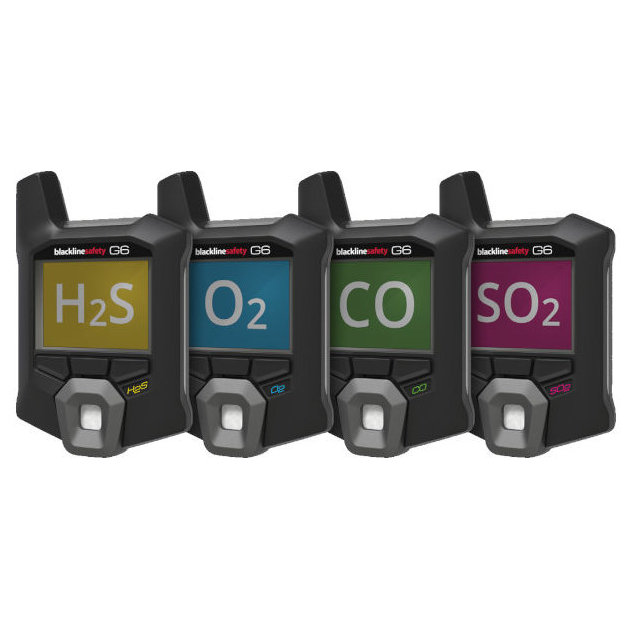

- Single-gas monitoring - CO, H2S, O2, or SO2
- Direct-to-cloud connectivity
- Over-the-air configurations
- Automatic over-the-air updates
- Integrated GPS location technology
- Up to 1-year battery life
- Rechargeable battery (charger not included)
- Automatic bump tests and calibrations through G6 Dock
Standard safety features:
- Device location, gas readings, bump and calibration data, and alarms automatically uploaded daily
- High gas notification
- Low gas notification
- Short-term exposure limit (STEL) notification
- Bump test and calibration notification
- Bump test and calibration failure notification
Additional Plan Options:
The G6 single gas detector is available as a Lease over a four year term and a hybrid G6 combination plan, where the meter is purchased but sensors are covered under a lease agreement. This incorporates payment for the device up front and then allowing for payment on System Access over the 4 year term of the device. Monthly rates are billed annually which results in an easier entry for your budgeting. One payment, once a year. Contact us for more details.
G6 Cloud-Connected Single Gas Detector
Sensor Specifications
GAS |
SENSOR TYPE |
RANGE |
RESOLUTION |
CARBON MONOXIDE (CO) |
Electrochemical |
0–500 ppm |
1ppm |
HYDROGEN SULFIDE (H2S) |
Electrochemical |
0–100 ppm |
0.1ppm |
OXYGEN (O2) |
Electrochemical |
0–25% vol |
0.1% vol |
SULFUR DIOXIDE (SO2) |
Electrochemical |
0–100 ppm |
0.1 ppm |
General Specifications
Size & weight |
Size: 64 mm x 124 mm x 27 mm (2.5” x 4.9” x 1.1”) Weight: 162 g (5.7 oz)
|
User notification |
240 x 320 pixel graphical, high contrast, 6-bit color liquid crystal display Menu system and power-on driven by three-button keypad Multi-language support: EN, FR, ES, DE, IT, NL, PT
|
User notification |
Visual: Color display and multi-color lights on top and side Sensory: Vibrating Audible: ~95 dB @ 30 cm (11.8”)
|
Power & battery |
Rechargeable Li-ion battery: 1200 mAh Battery life: Up to 1 Year at 20°C (68°F) under normal usage Charge time: 4 hours
|
Approvals |
SAR, RoHS, CE, RCM FCC ID: W77G62 IC: 8255A-G62 Contains FCC ID: XPY1EIQ24NN, IC: 8595A-1EIQ24NN Canada & USA: Class I Division 1 Group A,B,C,D T4; Class I Zone 0 AEx ia IIC T4; Ex ia IIC T4 Ga IECEx: Ex ia IIC T4 Ga ATEX: Ex ia IIC T4 Ga UKCA: Ex ia IIC T4 Ga
|
Wireless radio |
Antenna: Internal regionally optimized |
Location technology |
GPS Radio: 48-channel high sensitivity Assisted-GPS: Yes GPS Accuracy: ~5 m (16 ft) Outdoors Location update frequency: During high urgency events
|
Location technology |
Device configuration changes: Yes Device firmware upgrade OTA: Yes
|
Environmental |
Storage temperature: -22°F to 140°F Operating temperature: -4°F to 131°F Charging temperature: 32°F to 113°F Ingress Protection: Designed to meet IP67
|
Warranty |
Four-year limited warranty |
Blackline Live web application |
Cloud-hosted safety monitoring web application is customizable for every customer requirement Includes compliance dashboard, map, user roles, device configurations, notification setups, and essential reporting
|
