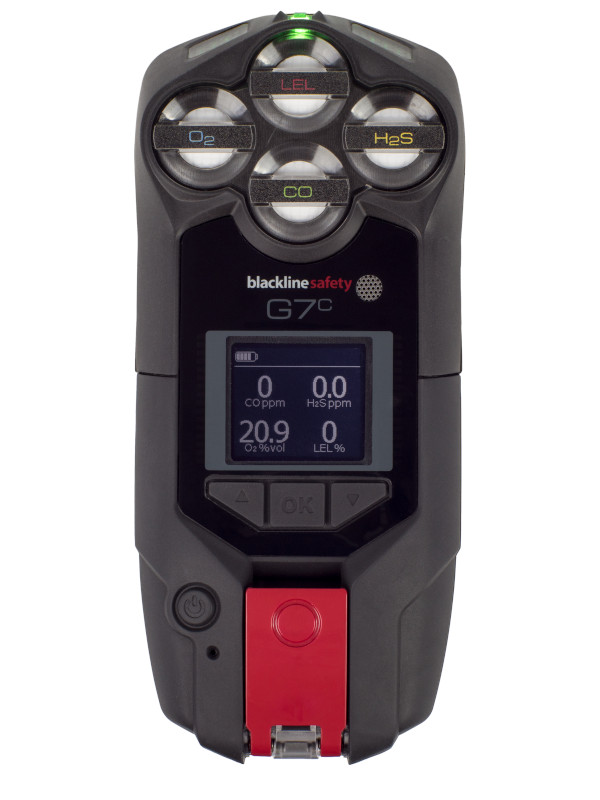

G7c Wireless 1 to 5 Gas Detector
The Blackline Safety G7C is the world’s first direct-to-cloud connected gas detector. Integrated cellular communications allows the G7c to stream bump test, calibration and usage data to the Blackline Cloud, automating your regulatory compliance reporting. Spend less time retrieving data logs from the field and more time taking care of what's important.
The G7c can be configured for up to five different gases. The G7c uses a replaceable sensor cartidge that is available as either pumped or diffusion. Sensor cartridges can easily be replaced in the field, with each cartridge holding its own bump and calibration data.
Connectivity
G7 devices constantly stream situational data to the Blackline Live safety platform. The safety status of every team member is visible at a glance, and should something happen, this data can help identify precisely where to send help and how to prepare first responders for the scene.
With a fully-customized emergency response protocol, all your
bases are covered. Choose to be notified by call, text or email in
the event of an incident, or allow the Blackline Safety Operations
Center to professionally manage every alert. Always be in control, even when you can’t physically be there.
Everything from alert management to bump and calibration status to real-time gas readings is updated to your web portal, directly from employee-worn G7 devices. With online device configuration and automatic over-the-air updates, your equipment is always current with zero downtime.
Features:
- Fully-connected personal safety monitor with intrinsically safe hardware
- Detectors can be configured with up to 4 sensors and a total of up to 5 gases
- Two-way text messaging
- Optional two-way voice calling (G7c)
- Fall, no-motion and missed check-in detection
- Manual SOS latch
- Assisted-GPS location technology
- Indoor location technology
- Push-to-talk capability
Leases and blended lease/purchase also available. Please contact us for additional configurations, service options, warranty options, and purchase options.
G7c Wireless 1 to 5 Gas Detector
| Size (w/quad gas cartridge): |
2.52”x 5.91” x 1.06” (66 mm x 150 mm x 27 mm) |
| Weight: |
6.8 oz. (192g) |
| Temperature: |
-20°C to 55°C (-4°F to 131°F) |
| Battery Life: |
18 hours continuous operation at 20° C (68° F) |
| Charge Time: |
4 Hours |
| Alert Features: |
Fall detection and No motion detection
Emergency latch
Low-battery
Worker check-in
|
| Safety Features: |
Low, High, TWA and STEL alarms
Bump test and calibration failure alert
|
| Display: |
168 by 144 pixel graphical, high contrast, liquid crystal display |
| User Notification: |
Green SureSafe light
Yellow top and front lights
Red top and front lights
Blue LiveResponse top and front lights
Audible: ~90 dB @ 10 cm
Speakerphone and phone modes
|
| Location Technology: |
GPS Radio: 48-channel high sensitivity
Assisted-GPS: Yes
GPS Accuracy: ~5 m (16 ft) Outdoors
Indoor location technology: Blackline Safety location beacons
Location update frequency: G7c 10 sec, G7x 15 min
|
| Warranty: |
G7: 2 years
Cartridges: Lifetime
G7 Complete Plan: 3 years
|
G7c Wireless 1 to 5 Gas Detector
| Gas |
Sensor type |
Range |
Resolution |
| Ammonia (NH3) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| High-range ammonia (NH3) |
Electrochemical |
0–500 ppm |
1 ppm |
| Carbon monoxide (CO) |
Electrochemical |
0–500 ppm |
1 ppm |
| High-range carbon monoxide (CO) |
Electrochemical |
0–2000 ppm |
5 ppm |
| Hydrogen resistant carbon monoxide (CO-H) |
Electrochemical |
0–500 ppm |
1 ppm |
| Carbon dioxide (CO2) |
NDIR |
0–50,000 ppm |
50 ppm |
| Chlorine (Cl2) |
Electrochemical |
0–20 ppm |
0.1 ppm |
| Chlorine dioxide (ClO2) |
Electrochemical |
0–2 ppm |
0.01 ppm |
| COSH |
Electrochemical |
0–500 ppm CO,
0–100 ppm H2S |
1 ppm CO, 0.1 ppm H2S |
| Hydrogen cyanide (HCN) |
Electrochemical |
0–30 ppm |
0.1 ppm |
| Hydrogen sulfide (H2S) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| High-range hydrogen sulfide (H2S) |
Electrochemical |
0-500 ppm |
0.5 ppm |
LEL-MPS
See Blackline's LEL-MPS datasheet for more information |
Molecular property spectrometerTM |
0–100% LEL |
0.1% LEL |
| LEL-infrared (LEL-IR) |
NDIR |
0–100% LEL |
1% LEL |
| Nitrogen dioxide (NO2) |
Electrochemical |
0–50 ppm |
0.1 ppm |
| Oxygen (O2) |
Pumped electrochemical |
0–25% vol |
0.1% vol |
| Ozone (O ) |
Electrochemical |
0–1 ppm |
0.01 ppm |
| Photoionization (PID) ppm |
PID |
0–4,000 ppm* |
Dynamic resolution*,
0.1 ppm |
| Sulfur dioxide (SO2) |
Electrochemical |
0–100 ppm |
0.1 ppm |
G7c Wireless 1 to 5 Gas Detector
System Access
Configure settings over-the-air on Blackline's cloud-based platform with 99.9% uptime. Plan includes live location data streaming and access to the real-time compliance dashboard. 2 years of access included with every purchase option, with additional years available for purchase.
Push-to-Talk Collaboration Plan
With Push-to-talk (PTT), your teams can use G7 just like a walkie-talkie. PTT features 100 channels of collaboration and global coverage that supports 250 users per channel. Affordability of the PTT service plan means that you can place the power of a walkie-talkie into the hands of all your personnel would not normally be equipped with a two-way radio. PTT is a highly valuable service that increases efficiency and quality, plus delivers critical connectedness needed to manage an emergency incident or an evacuation.
Self-Managed Protect Plan
Self-monitoring real-time service plan enables your supervisors, managers, network operations center or other partner to monitor the safety of your teams in the field and throughout facilities. Every alert generated by G7 wearables or G7 EXO area gas monitors are managed from receipt through to resolution using Blackline Live software. Configure email and text message alerts to your team and use the alert management workflow that features a map where your teams are distributed in order to organize an effective responser.
Blackline 24/7 Monitored Plan
Blackline Safety's in-house Safety Operations Center (SOC) oversees emergency and evacuation response management services for tens of thousands of workers. Should your business not be configured to optimally manage proactive responses, the TMA Five Diamond SOC includes a team of highly trained agents that have your business covered. The Blackline team boasts a response time with an engaged agent in under 60 seconds 99% of the time.
