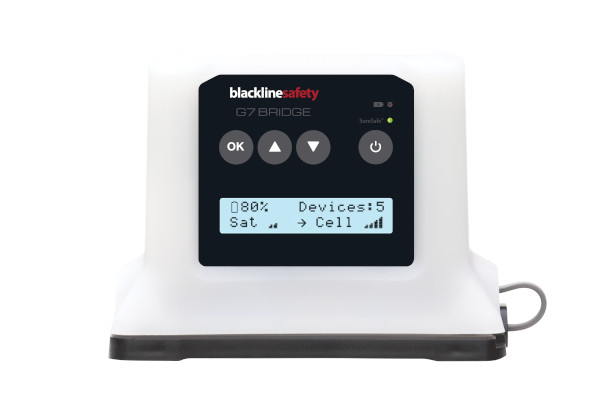

G7 Bridge for G7x
The G7x system includes the G7x user-worn device and G7 Bridge portable satellite and
cellular base station. Leveraging 3G and Iridium satellite networks, connectivity seamlessly transitions to satellite when cellular becomes unavailable, providing true last-mile monitoring. Up to five G7x devices connect with G7 Bridge through an industrial-quality 900 MHz radio link from up to 2 km away. G7 Bridge can mass-notify employees of the need to evacuate and connect workers to monitoring personnel via two-way messaging. G7 Bridge is self-powered and portable, allowing users to quickly move it from one vehicle to another. It has your teams' back — at all times, no matter their location.
G7 Bridge for G7x
| Dimensions: |
73 mm x 107 mm x 141 mm (2.87”x 4.21”x 5.55”) Measurements do not include mount |
| Weight: |
540 g (19.04 oz) |
| Radio: |
UMTS 800/850/900/1900/2100; Quad-band GSM/GPRS 850, 900, 1800, 1900; Iridium Satellite (1621 MHz); ISM band radio (915 MHz)
900 MHz Radio: Americas: 902 – 928 MHz Australian/New Zealand: 916 – 927 MHz, 1 Watt |
| 900 MHz Radio Link Range: |
General use: up to 2 km
Hilltop to hilltop: 10+ km Terrain, foliage, and buildings will affect overall 900 MHz radio link range
|
| Power & Battery: |
Rechargeable Li-ion battery: 6800 mAh capacity
Battery Life: 50 hours @ 20°C (68°F); 44 hours @ -20°C
(-4°F); 14 hours @ -40°C (-40°F); It is recommended that the hard wire kit is used anytime below -20°C
Charging connector: Micro USB
Antenna: Internal
|
G7 Bridge for G7x
