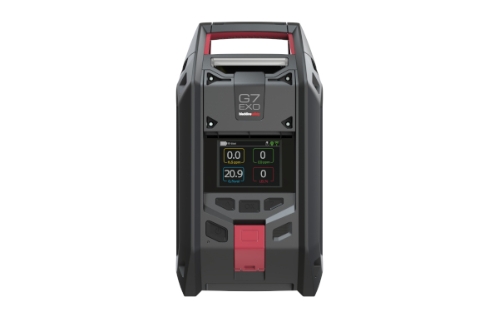

G7 EXO Area Gas Monitor
G7 EXO takes your area gas monitoring program to the next level with integrated 4G cellular connectivity and industry-leading 100-day battery life.

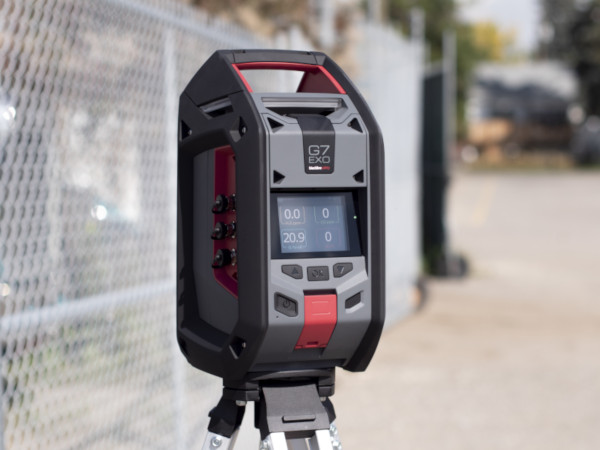

No matter whether it's monitoring site perimeters, tanks, confined spaces or disasters, EXO is built to withstand anything you or mother nature can throw at it. And, unlike traditional area monitors, EXO's integrated connectivity makes deployment quick and easy, taking just a few minutes.
No more questions, just simple placement and hassle-free execution. On startup, G7 EXO’s start-up wizard communicates the status of its network connectivity, GPS/beacon signal and placement status to the Blackline Safety Cloud.
Blackline offers one of the broadest gas sensor portfolios around. With EXO, one product supports thousands of configuration options. We have your area monitoring needs covered with up to five-gas diffusion operation, and the option for remote sampling.
G7 EXO features a three-year warranty and includes a three year System Access service plan. Blackline offers an extended warranty, extensions to System Access service and the option of real-time services.
Features
- 100+ day run time in standard operating configurations
- With 4G cellular connectivity
- Optional push-to-talk works like a walkie-talkie with 100 channels
- Optional 24/7 live monitoring by Blackline’s in-house Safety Operations Center
- Optional four-channel pump module for multi-area monitoring
- More than 20 gas sensor options
- Optional satellite module for true global coverage
- Simultaneous monitoring of up to five gases
- Automated configuration changes and firmware updates
- Automated usage and compliance reporting
- Rugged exterior stands up to the harshest conditions
- Integrated GPS and location beacon capability
- 360º diffusion gas detection
G7 EXO Area Gas Monitor
View the full Data Sheet Here
| User Interface |
Display: 480 x 640 pixel, eight-colour active matrix liquid crystal display
Menu System: dirven by three-button keypad
Power Button: On/Off
SOS Latch: Send emergency alert
Multi-language Support: (EN, FR, ES, DE, IT, NL, PT) |
| User notification |
Green connectivity light: Blinking (powered), continuous (connected)
360-degree visible yellow and red lights
Yellow light: pending and warning alarms
Red light: Red alert communicated
Blue LiveResponse light: Confirmation that a monitoring team has acknowledged the alert
Alarm sound pressure: ~100 dB @ 30 cm (11.8”)
Two-way voice calling sound pressure: ~95 dB @ 30 cm (11.8”) |
| Pump module |
Number of pump channels: 4
Sampling period per channel: Adjustable
Tubing length per channel: Up to 30 m (100 ft) |
| Input / output ports |
Intrinsically safe, highly configurable external signal ports designed to integrate with external alarms and electrical systems.
Intrinsic safety specification: TBD
|
| Power & battery |
Rechargeable battery capacity: 144 Ah (LiFePO4 )
Battery life in diffusion mode: 100 days at 20°C (68°F), LEL-IR, H2 S, CO and O2 config.
Battery life in pump mode: 30 days at 20°C (68°F), LEL-IR, H2 S, CO and O2 config.
Charge time: TBD
Intrinsically safe trickle-charging port: Yes, supports G7 EXO continuous operation |
| Cellular wireless radio |
Coverage: 100+ countries and 200+ carriers
Europe: 2G/3G or 2G/4G
North America: 2G/3G or 3G/4G
Australia/New Zealand: 2G/3G or 3G/4G
Antenna: Regionally optimized
Band specifications: TBD |
| Satellite wireless radio option |
User-upgradeable add-on: Yes
Network: Iridium, global coverage
|
| Wireless updates |
Device configuration changes: Yes
Device firmware upgrade OTA: Yes
|
| Location technology |
GPS radio: 48-channel high sensitivity
Assisted-GPS: Yes
GPS accuracy: ~5 m (16 ft) outdoors, open sky
Location beacon radio: Yes, Blackline’s proprietary location beacon technology and floor/site plans |
| Size & weight |
Material: Rugged housing built from aluminum, plastic and rubberized bumpers
Size: 385 mm x 188 mm x 220 mm
Weight: 9.5 kg |
| Environmental |
Storage temp.: -40°C to 60°C
Operating temp.: -40°C to 55°C
Charging temp.: 0°C to 45°C
Ingress protection: Designed to meet IP65 |
| Warranty |
G7 EXO area monitor: three-year hardware warranty
Gas sensors and pumps: lifetime warranty with active service plan
Blackline Complete lease option: provides comprehensive warranty for full three-year term |
G7 EXO Area Gas Monitor
| Gas |
Sensor type |
Range |
Resolution |
| Ammonia (NH3) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| High-range ammonia (NH3) |
Electrochemical |
0–500 ppm |
1 ppm |
| Carbon monoxide (CO) |
Electrochemical |
0–500 ppm |
1 ppm |
| High-range carbon monoxide (CO) |
Electrochemical |
0–2000 ppm |
5 ppm |
| Hydrogen resistant carbon monoxide (CO-H) |
Electrochemical |
0–500 ppm |
1 ppm |
| Carbon dioxide (CO2) |
NDIR |
0–50,000 ppm |
50 ppm |
| Chlorine (Cl2) |
Electrochemical |
0–20 ppm |
0.1 ppm |
| Chlorine dioxide (ClO2) |
Electrochemical |
0–2 ppm |
0.01 ppm |
| COSH |
Electrochemical |
0–500 ppm CO,
0–100 ppm H2S |
1 ppm CO, 0.1 ppm H2S |
| Hydrogen cyanide (HCN) |
Electrochemical |
0–30 ppm |
0.1 ppm |
| Hydrogen sulfide (H2S) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| High-range hydrogen sulfide (H2S) |
Electrochemical |
0-500 ppm |
0.5 ppm |
LEL-MPS
See Blackline's LEL-MPS datasheet for more information |
Molecular property spectrometerTM |
0–100% LEL |
0.1% LEL |
| LEL-infrared (LEL-IR) |
NDIR |
0–100% LEL |
1% LEL |
| Nitrogen dioxide (NO2) |
Electrochemical |
City Technology, 4ND |
0–50 ppm |
0.1 ppm |
| Oxygen (O2) |
Pumped electrochemical |
0–25% vol |
0.1% vol |
| Ozone (O ) |
Electrochemical |
0–1 ppm |
0.01 ppm |
| Photoionization (PID) ppm |
PID |
0–4,000 ppm* |
Dynamic resolution*,
0.1 ppm |
| Sulfur dioxide (SO2) |
Electrochemical |
0–100 ppm |
0.1 ppm |
G7 EXO Area Gas Monitor
G7 EXO Area Gas Monitor
System Access
Configure settings over-the-air on Blackline's cloud-based platform with 99.9% uptime. Plan includes live location data streaming and access to the real-time compliance dashboard. 2 years of access included with every purchase option, with additional years available for purchase.
Push-to-Talk Collaboration Plan
With Push-to-talk (PTT), your teams can use G7 just like a walkie-talkie. PTT features 100 channels of collaboration and global coverage that supports 250 users per channel. Affordability of the PTT service plan means that you can place the power of a walkie-talkie into the hands of all your personnel would not normally be equipped with a two-way radio. PTT is a highly valuable service that increases efficiency and quality, plus delivers critical connectedness needed to manage an emergency incident or an evacuation.
Self-Managed Protect Plan
Self-monitoring real-time service plan enables your supervisors, managers, network operations center or other partner to monitor the safety of your teams in the field and throughout facilities. Every alert generated by G7 wearables or G7 EXO area gas monitors are managed from receipt through to resolution using Blackline Live software. Configure email and text message alerts to your team and use the alert management workflow that features a map where your teams are distributed in order to organize an effective responser.
Blackline 24/7 Monitored Plan
Blackline Safety's in-house Safety Operations Center (SOC) oversees emergency and evacuation response management services for tens of thousands of workers. Should your business not be configured to optimally manage proactive responses, the TMA Five Diamond SOC includes a team of highly trained agents that have your business covered. The Blackline team boasts a response time with an engaged agent in under 60 seconds 99% of the time.
G7 EXO Area Gas Monitor
