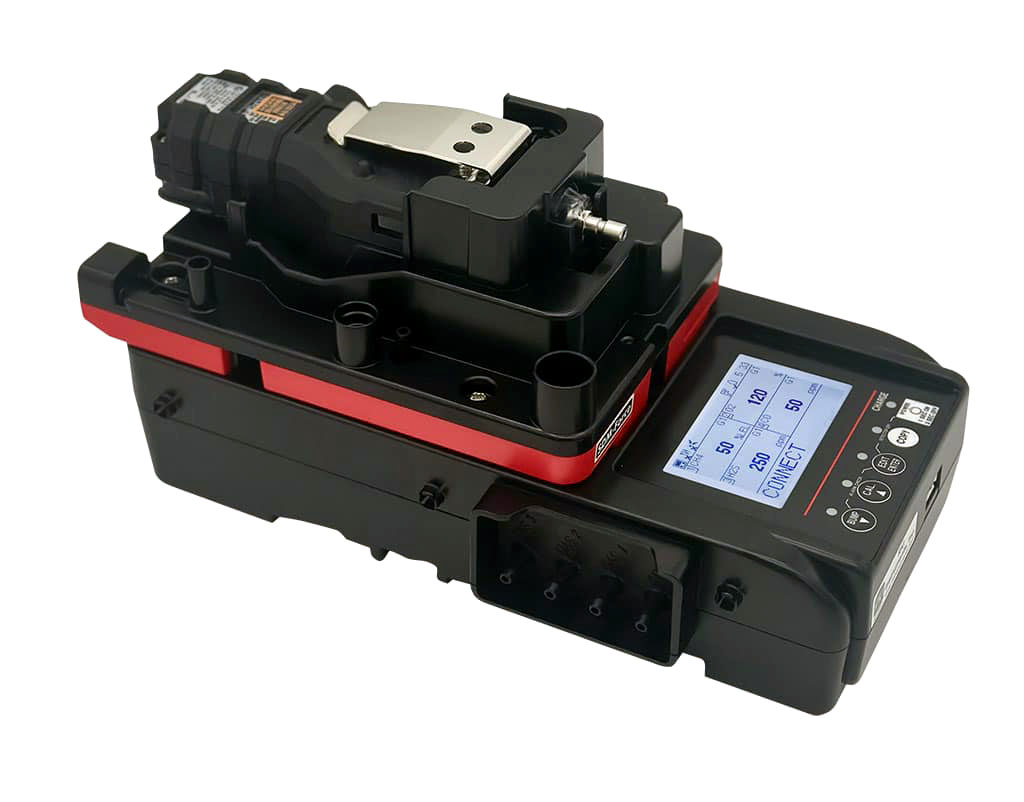

SDM-Force Bump Test & Calibration Station for GX-Force
The SDM-Force is a versatile maintenance tool that automates the service of a GX-Force portable gas monitor. This docking station can be used as a stand alone device for charging, calibrating and bump testing with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).
The SDM-Force can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from GX-Force instruments. Up to ten SDM-Force docking stations can be connected simultaneously using USB cables and the SDM-Force includes connections for one to three calibration gas cylinders.
Features:
- Up to 5 SDM cradles can be used when using a demand flow regulator (10 max with gas sampling bags)
- Units are charged on the SDM via USB-C
- Calibration and bump test data available via USB
- GX-Force configurations can be conducted from cradle
- May be configured for 1 or 2 calibration cylinders
- Includes PC software for viewing/archiving bump test and calibration records
SDM-Force Bump Test & Calibration Station for GX-Force
Input Power |
Main unit input: 5.2 VDC
Accessory AC adapter input: 100-240 VAC |
Operating Temperature |
0 to 40 ° C (no sudden fluctuations) |
Applicable Instruments |
GX-Force |
Memory capacity |
Up to 500 bump tests, calibrations, or alarm checks |
Number of Calibration Gas Cylinders |
Up to three calibration gas cylinders |
Standard Accessories |
- USB-C cable for instrument connection
- Air Filter
- AC Adapter
- Exhaust tubing
- Flash drive
- USB-A to USB-B cable
- LAN cable
|
SDM-Force Bump Test & Calibration Station for GX-Force
